Input voltage（120VAC）.

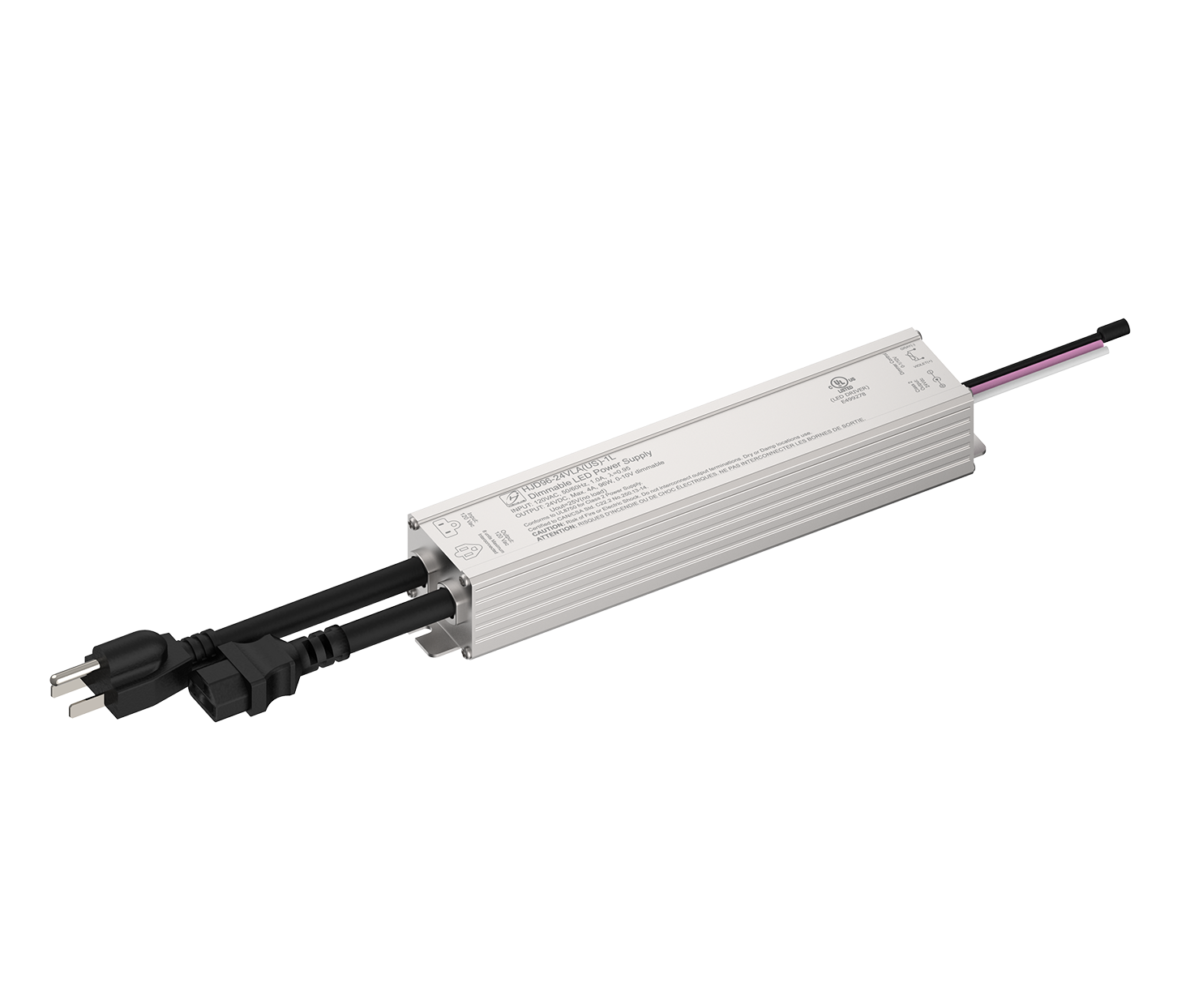

Input use AC inlet for quick connection.
Input interconnect additional up to maximum 8 drivers(HJD96-24VLA(US)-1L)
Damp locations use.
Isolation 0/1-10v dimming interface with dimming range 5%-100%.
Fast start-up time≤0.5W.
Class 2 output.
Protections:
-against open and short circuits;
-against overheating;
-against overloads.
5-years warranty.
| Item code | Rated input | PF | No load power consumption | Output | Output power range | Tolerance | Efficiency | ta | tc | size | Approval |
| HJD96-24VLA(US)-L | AC120V | 0.95 | ≤0.5W | 24VDC | 0-96W | +/-5% | 90.0% | -20...+45℃ | 85℃ | 219x46x38.1 | UL CUL |
| HJD96-24VLA(US)-L | AC120V | 0.95 | ≤0.5W | 24VDC | 0-30W | +/-5% | 90.0% | -20...+45℃ | 85℃ | 219x46x38.1 | UL CUL |
