US CV-12W

Feature

Input voltage (100-120VAC)

Independent constant voltage LED driver

Ultra-thin design, the height is 17.5mm.

Fast start-up time ≤0.5s.

No load power consumption ≤0.5w.

Class2 output.

Multiple outputs optional.

Protections:

-against open and short circuits;

-against overheating;

-against overloads.

5 years warranty.

The Product (PDF)
  • Application scenario

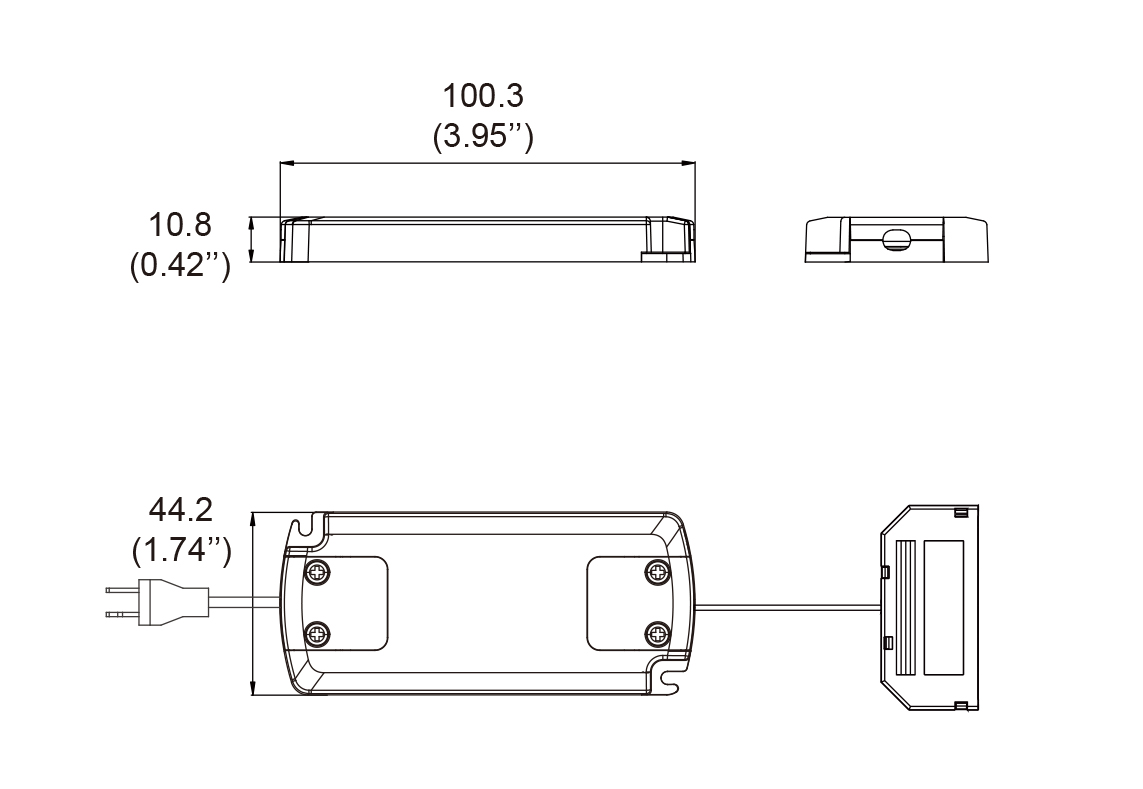

  • Size
  • Technic Data
  • Installation
  • Accessories


Item code Rated input PF No load power consumption Output Output power range Tolerance Efficiency ta tc size Approval
HJA30-12VF(UN)-L
 AC100-120V 0.95 ≤0.3W 12VDC 0-30W +/-5% 84.3% -20...+45℃ 90℃ 161X51.2X17.5 UL CUL
HJA30-24VF(UN)-L AC100-120V 0.95 ≤0.3W 24VDC 0-30W +/-5% 85.6% -20...+45℃ 90℃ 161X51.2X17.5 UL CUL
