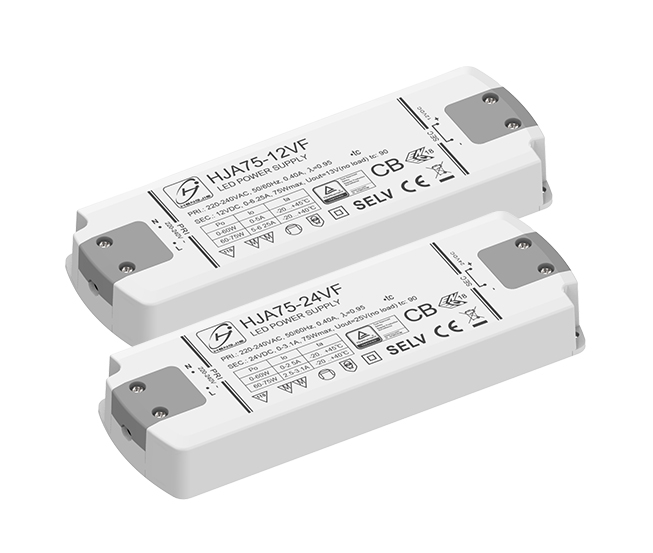

Ultrathin Series - 75W

Feature

—Independent constant voltage LED power supply

—Mini DC socket at the secondary side for quick connection

—Terminal block for quick connection

—Driver can be secured with slot for screws

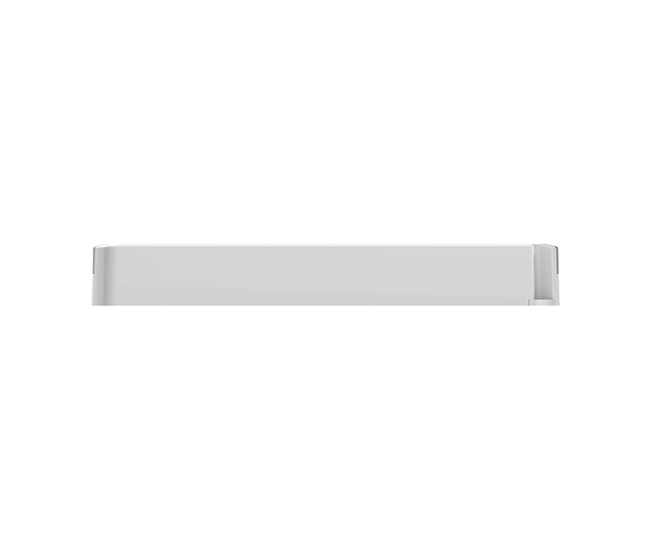

—Ultra-thin design, the height is 10.8mm

—Full protection functions with automatic recovery feature

—Fast start-up time ≤0.5s

—Protection class II, SELV output

—Efficiency: 77%

—Compliance to ERP directive: COMMISSION REGULATION (EU) 2019/2020

  • Application scenario

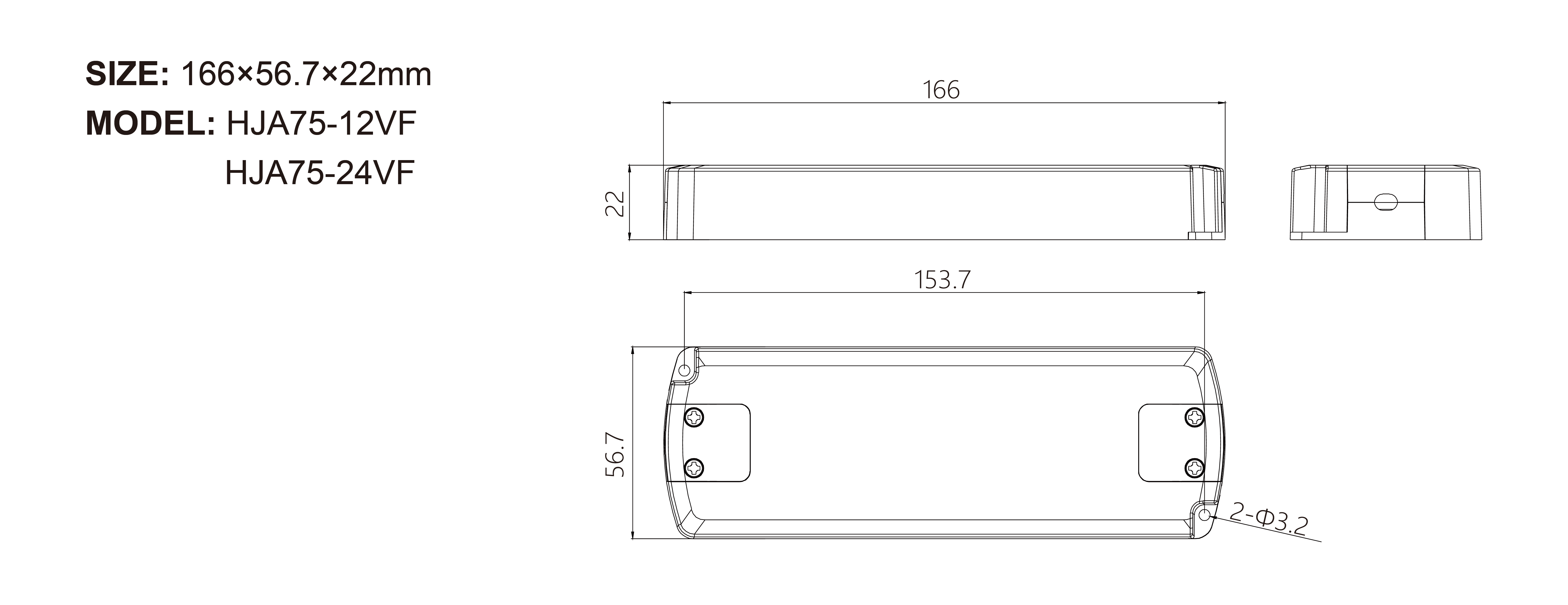

  • Size
  • Technic Data

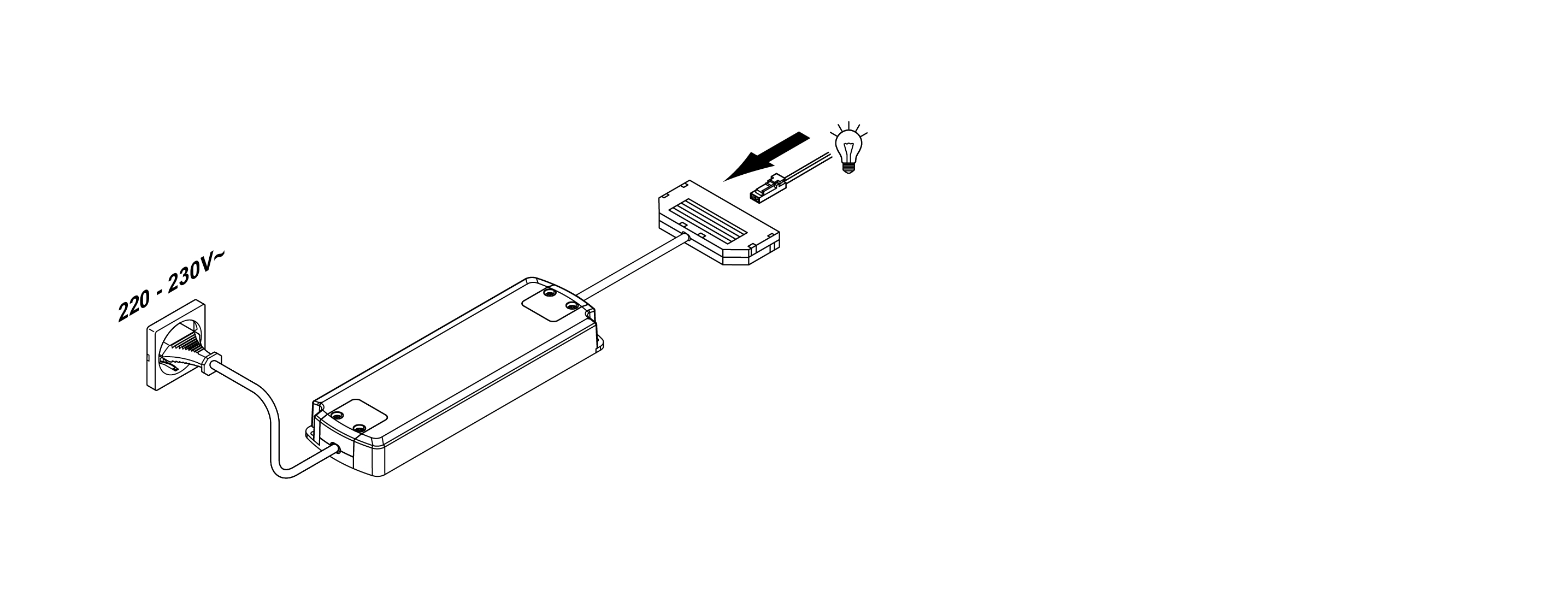

  • Installation

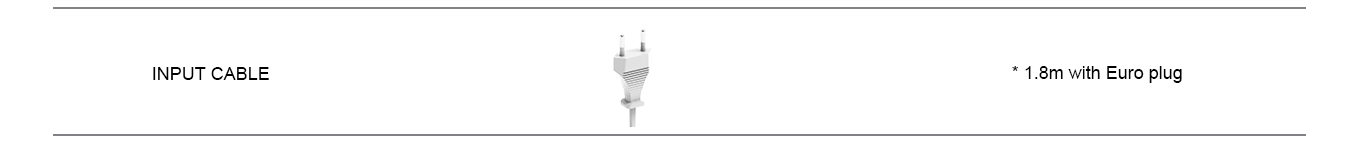

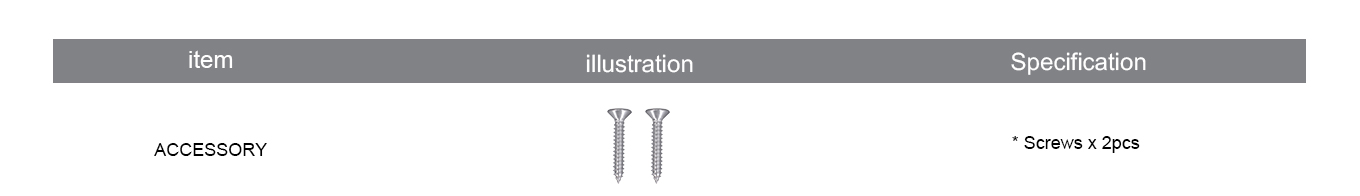

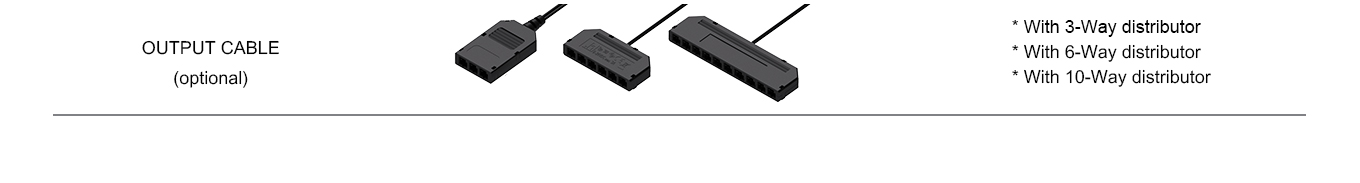

  • Accessories

ITEM CODE

Rated Input

PF

Output voltage
(current)

Output voltage(current)range

CV/CC

Ta

Tc

Size

Approval

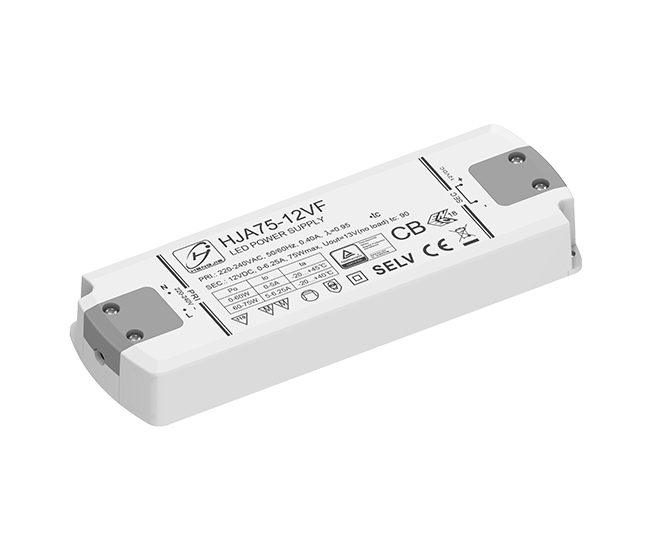

HJA75-12VF

220-240Vac

0.95

12V

0-6.25A

CV

-20…+45℃

90℃

166×56.7×22

ENEC TUV

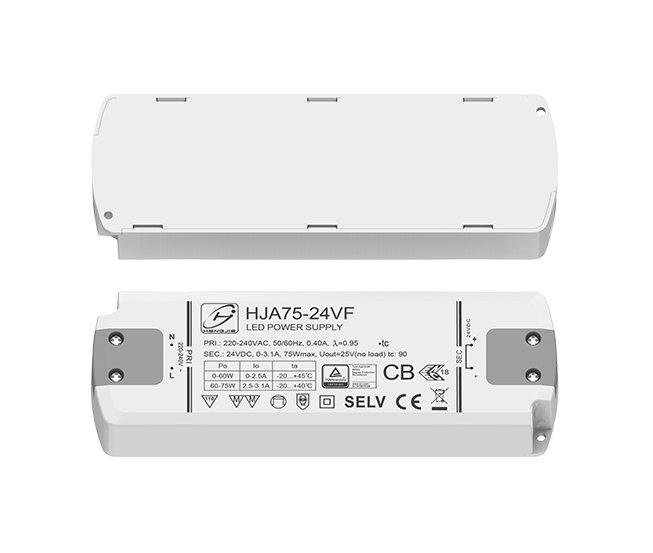

HJA75-24VF

220-240Vac

0.95

24V

0-3.1A

CV

-20…+45℃

90℃

166×56.7×22

ENEC TUV
