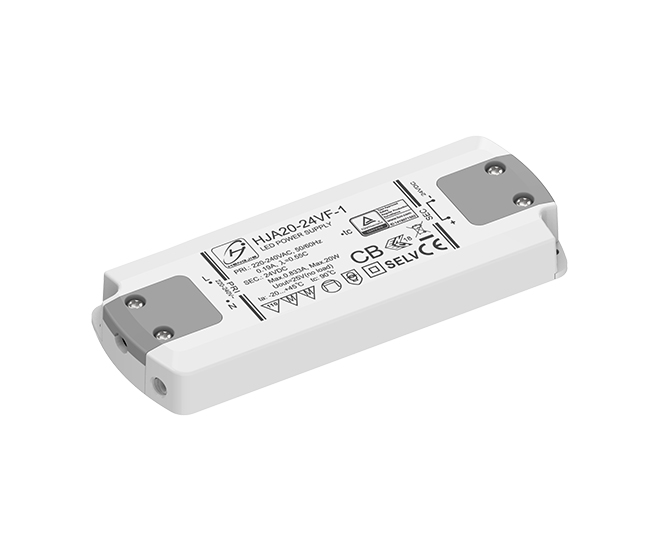

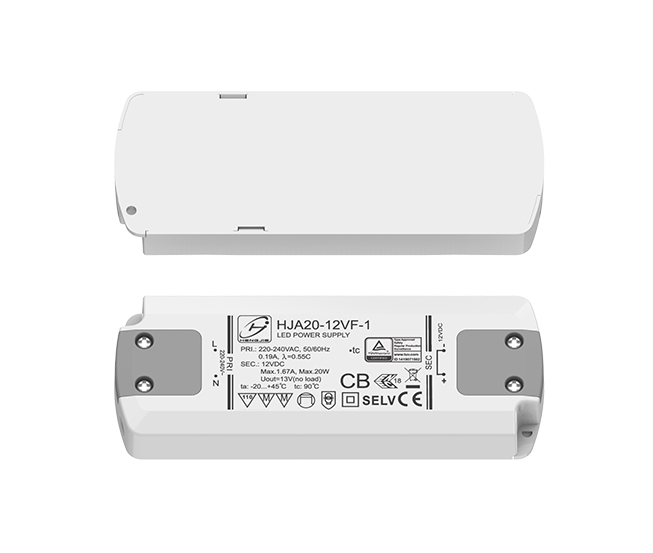

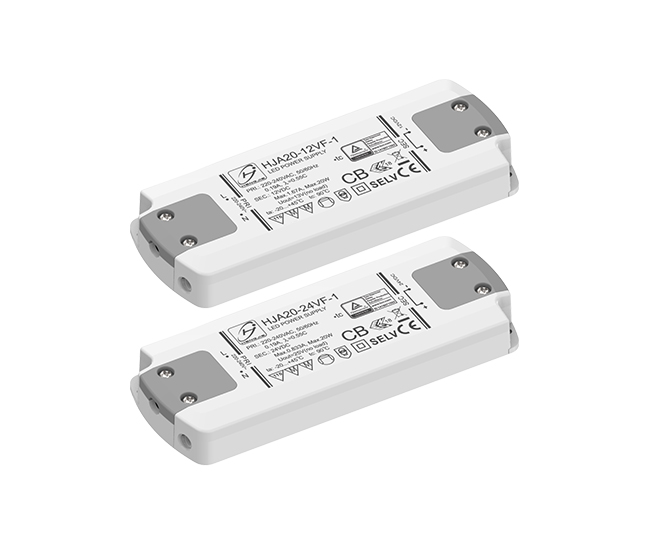

Ultrathin Series - 20W

Feature

—Independent constant voltage LED power supply

—Mini DC socket at the secondary side for quick connection

—Terminal block for quick connection

—Driver can be secured with slot for screws

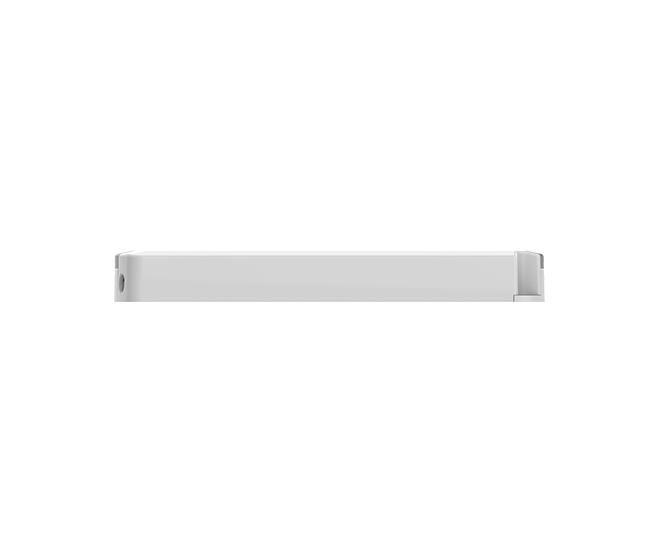

—Ultra-thin design, the height is 10.8mm

—Full protection functions with automatic recovery feature

—Fast start-up time ≤0.5s

—Protection class II, SELV output

—Efficiency: 77%

—Compliance to ERP directive: COMMISSION REGULATION (EU) 2019/2020

  • Application scenario

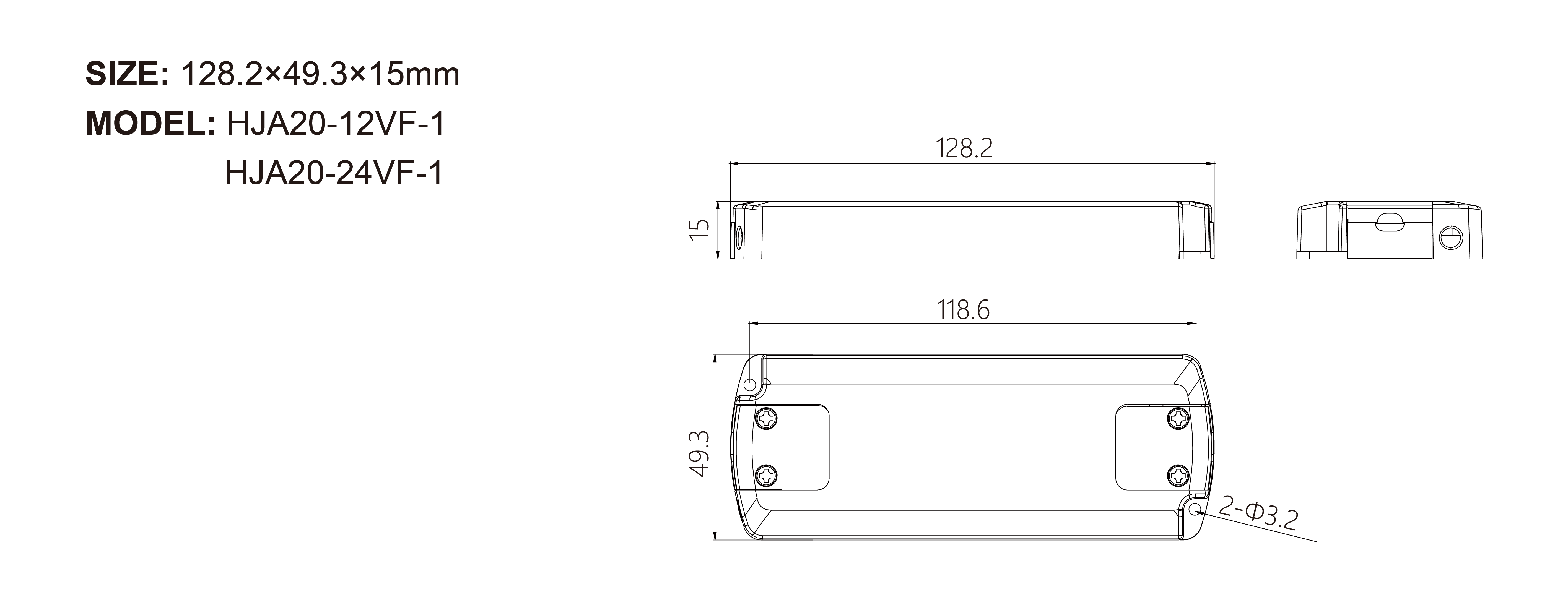

  • Size
  • Technic Data

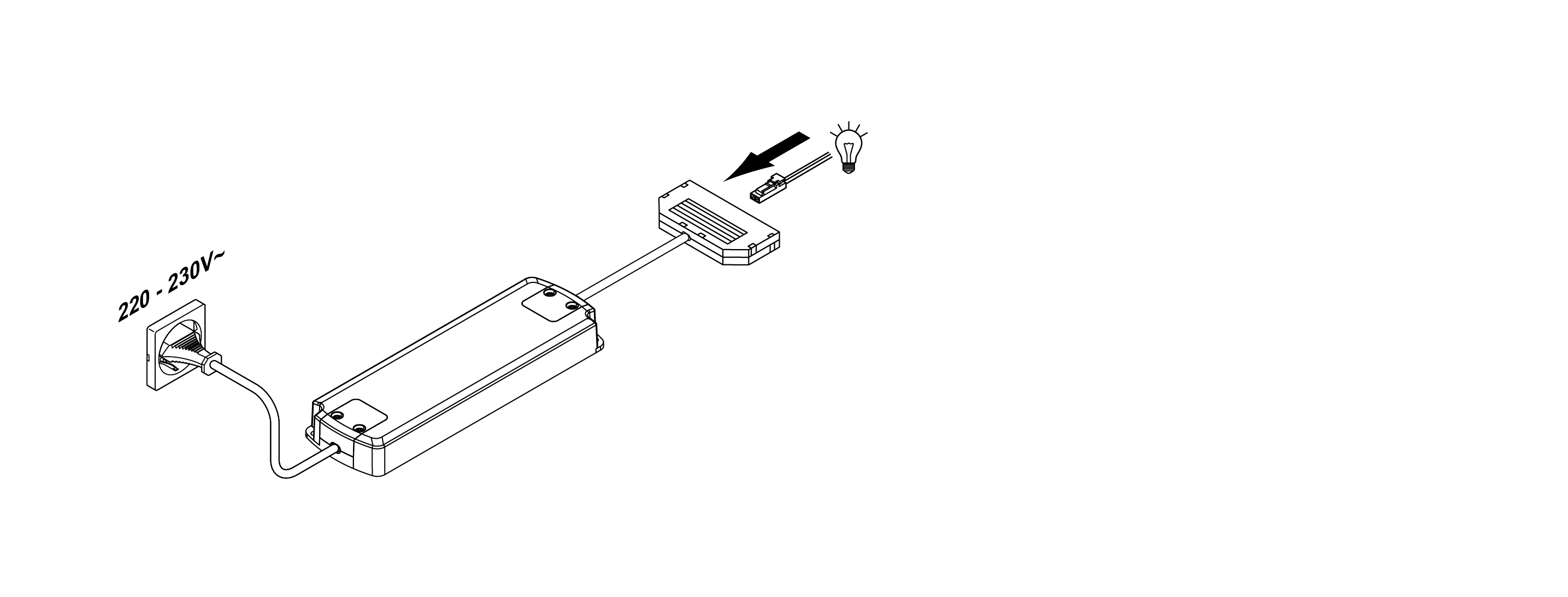

  • Installation

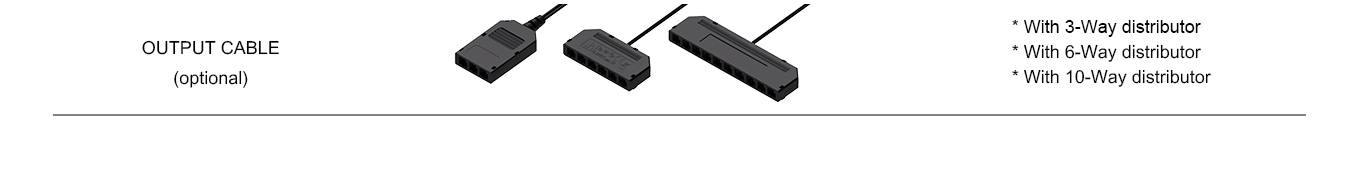

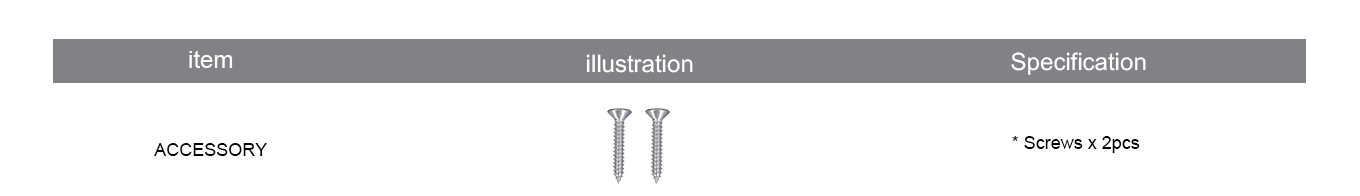

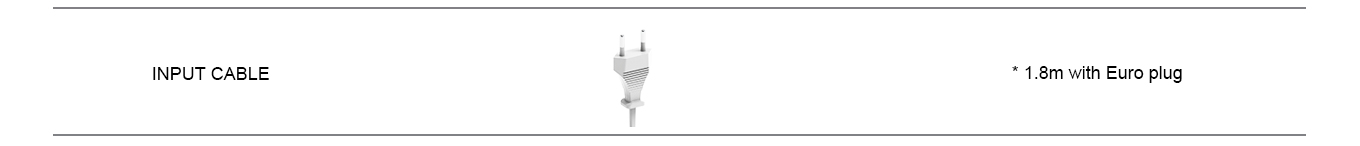

  • Accessories

ITEM CODE

Rated Input

PF

Output voltage
(current)

Output voltage(current)range

CV/CC

Ta

Tc

Size

Approval

HJA20-12VF-1

220-240Vac

0.50C

12V

0-1.67A

CV

-20…+45℃

90℃

128×49×15

ENEC TUV

HJA20-24VF-1

220-240Vac

0.50C

24V

0-0.83A

CV

-20…+45℃

90℃

128×49×15

ENEC TUV
