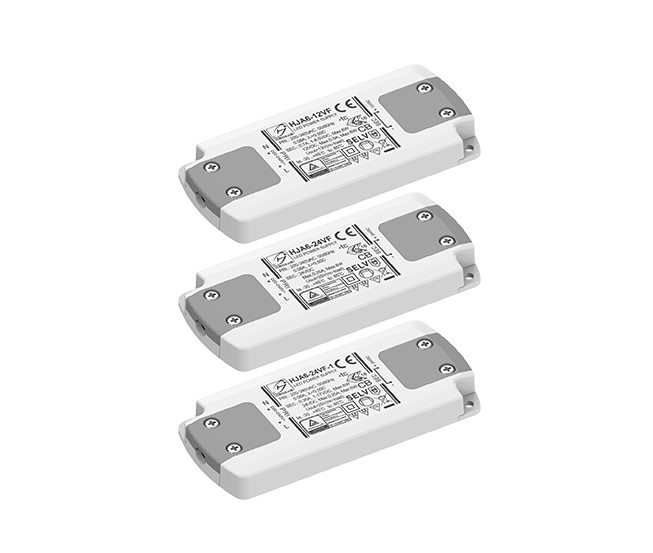

Ultrathin Series - 6W

Feature

—Independent constant voltage LED power supply

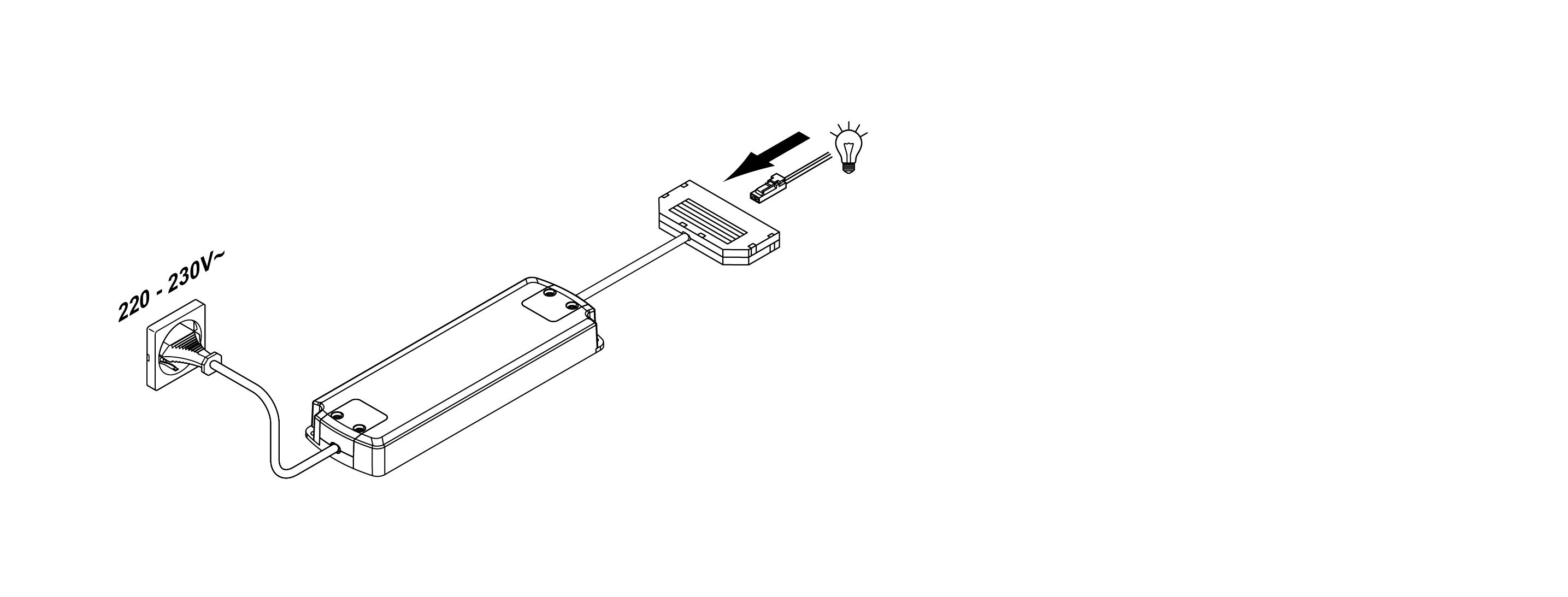

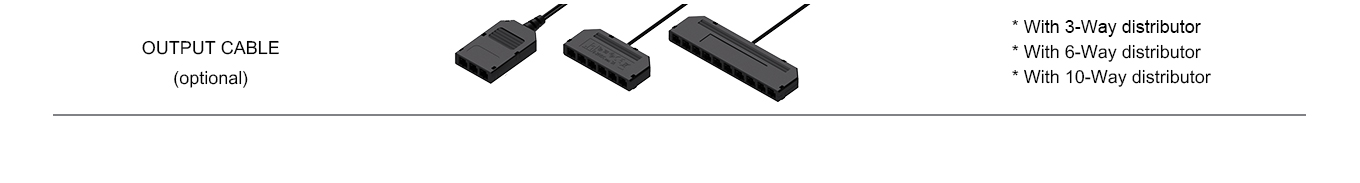

—Mini DC socket at the secondary side for quick connection

—Terminal block for quick connection

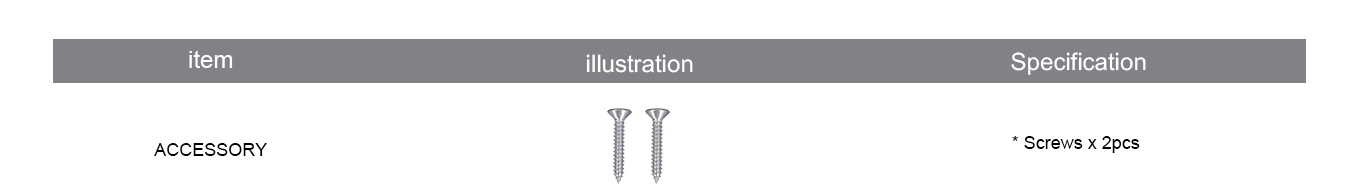

—Driver can be secured with slot for screws

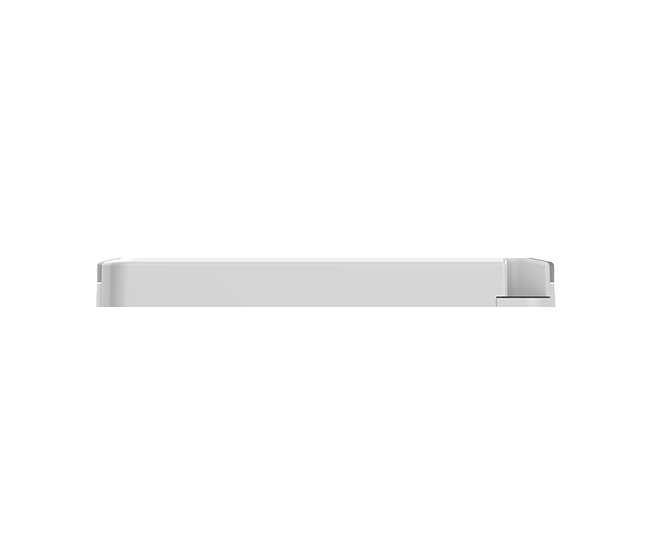

—Ultra-thin design, the height is 10.8mm

—Full protection functions with automatic recovery feature

—Fast start-up time ≤0.5s

—Protection class II, SELV output

—Efficiency: 77%

—Compliance to ERP directive: COMMISSION REGULATION (EU) 2019/2020

The Product (PDF)

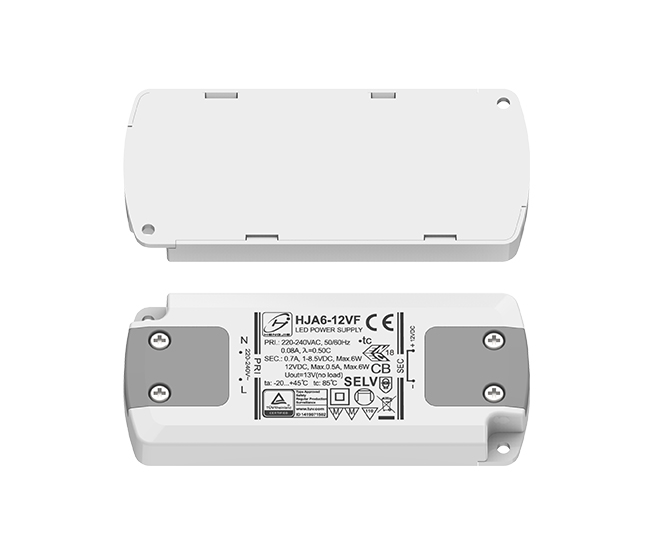

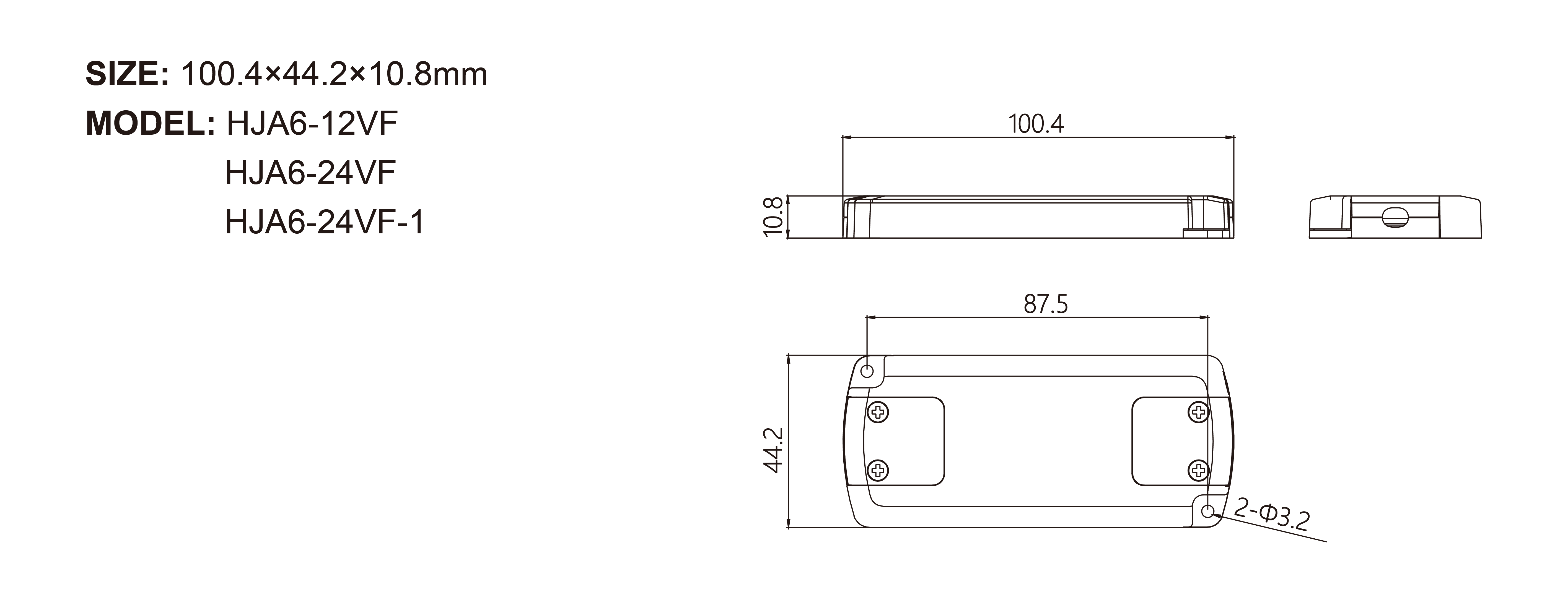

ITEM CODE	Rated Input	PF	Output voltage （current）	Output voltage（current）range	CV/CC	Ta	Tc	Size	Approval
HJA6-12VF	220-240Vac	0.50C	12V (for CV) 1-8.5V (for CC)	0-0.5A (for CV) 0.63-0.7A (for CC)	CVCC	-20…+45℃	85℃	100×44×10.8	ENEC TUV

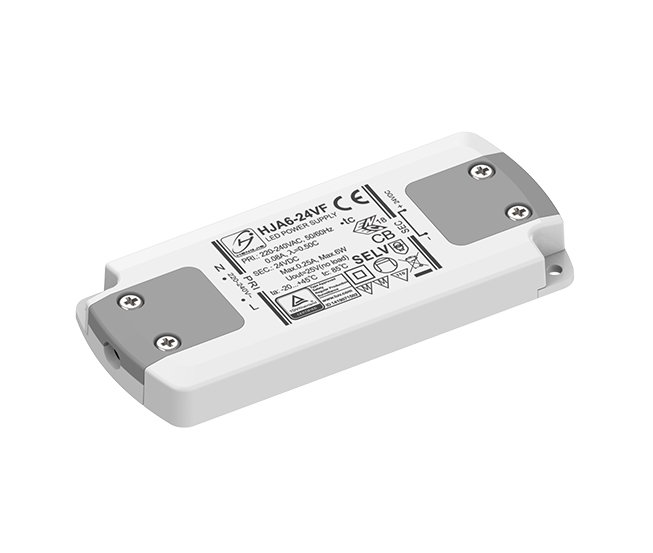

HJA6-24VF	220-240Vac	0.50C	24V	0-0.25A (for CV)	CV	-20…+45℃	85℃	100×44×10.8	ENEC TUV
HJA6-24VF-1	220-240Vac	0.50C	24V (for CV) 17V (for CC)	0-0.25A (for CV) 0.32-0.37A (for CC)	CVCC	-20…+45℃	85℃	100×44×10.8	ENEC TUV
