Ultrathin Series - 50W

Feature

—Independent constant voltage LED power supply

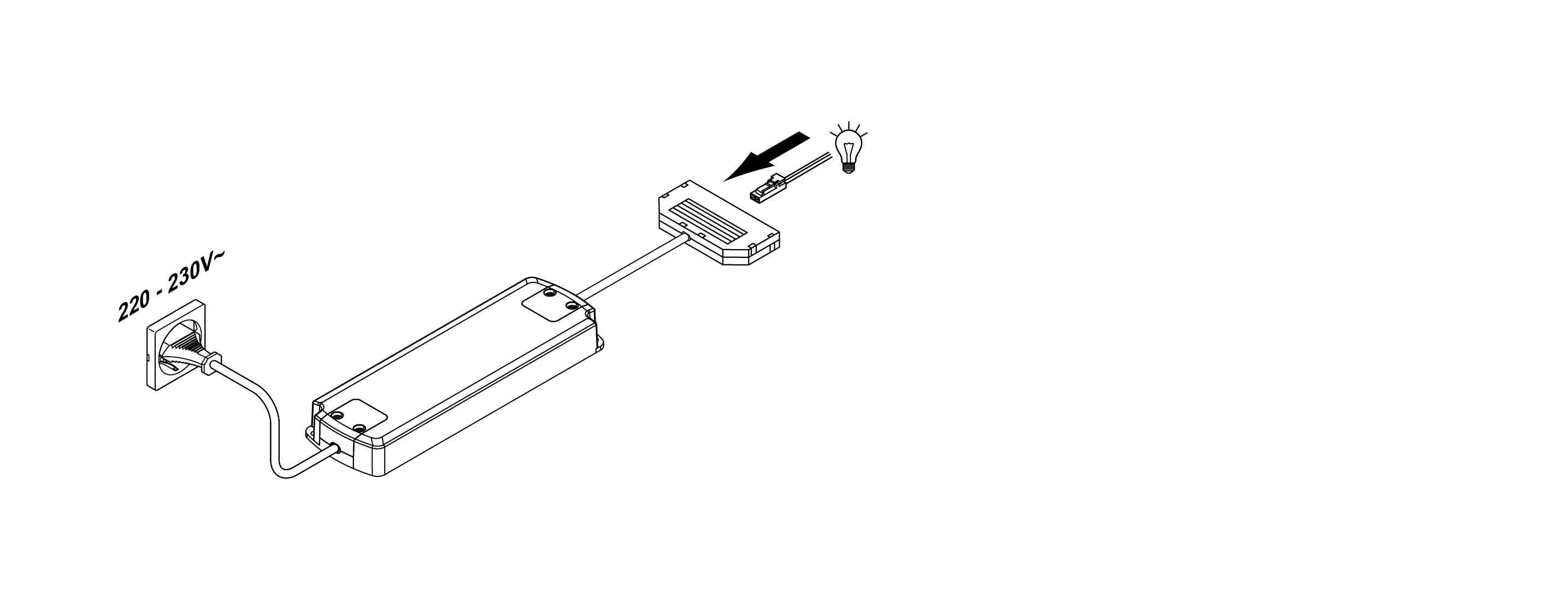

—Mini DC socket at the secondary side for quick connection

—Terminal block for quick connection

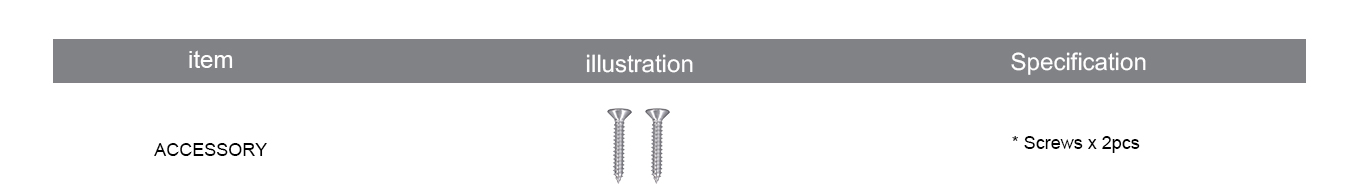

—Driver can be secured with slot for screws

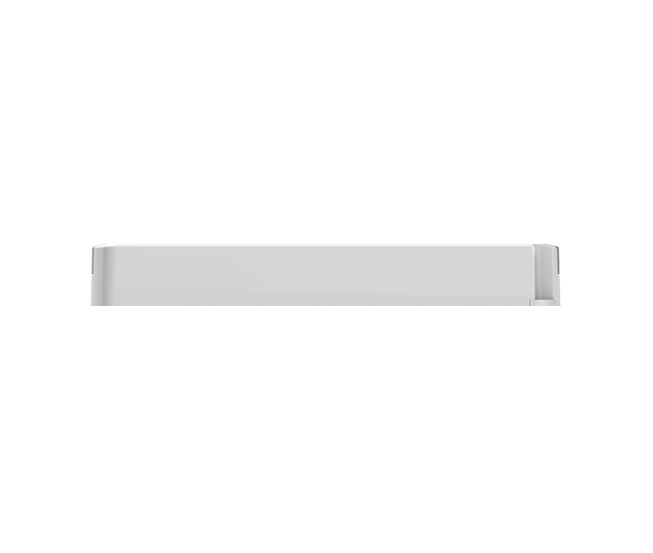

—Ultra-thin design, the height is 10.8mm

—Full protection functions with automatic recovery feature

—Fast start-up time ≤0.5s

—Protection class II, SELV output

—Efficiency: 77%

—Compliance to ERP directive: COMMISSION REGULATION (EU) 2019/2020

The Product (PDF)

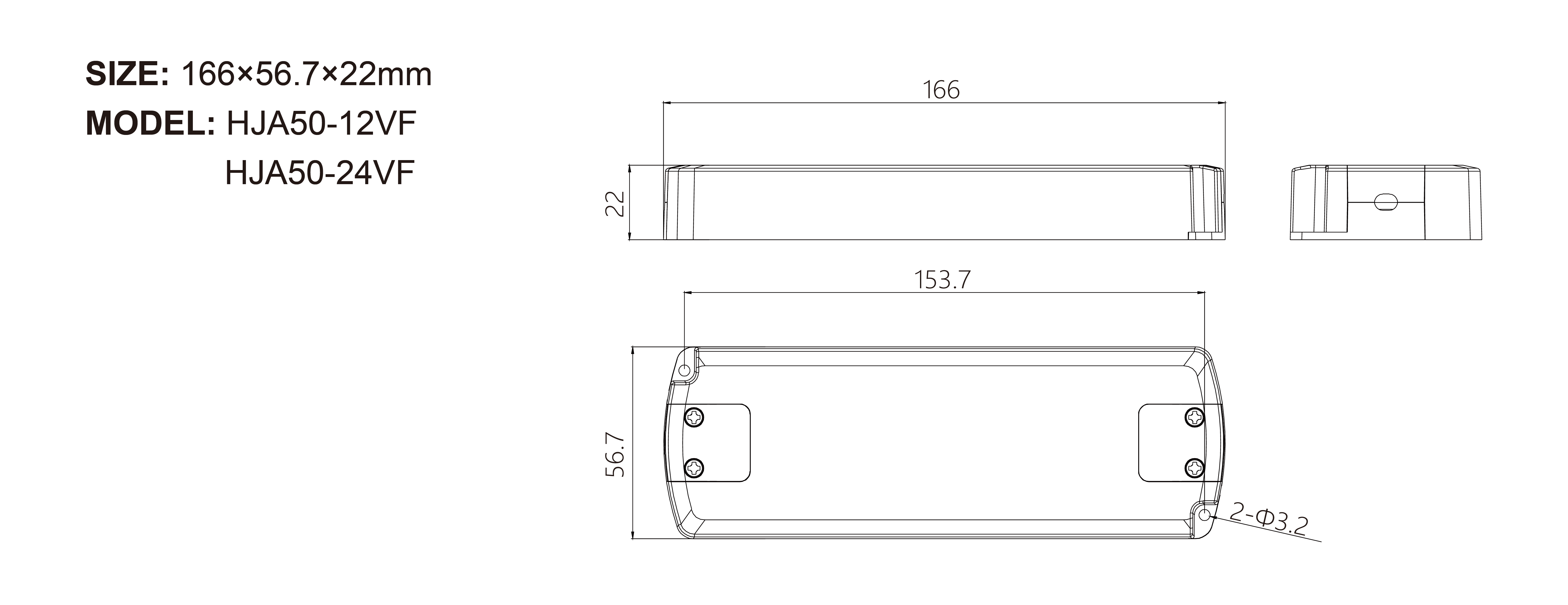

ITEM CODE	Rated Input	PF	Output voltage （current）	Output voltage（current）range	CV/CC	Ta	Tc	Size	Approval

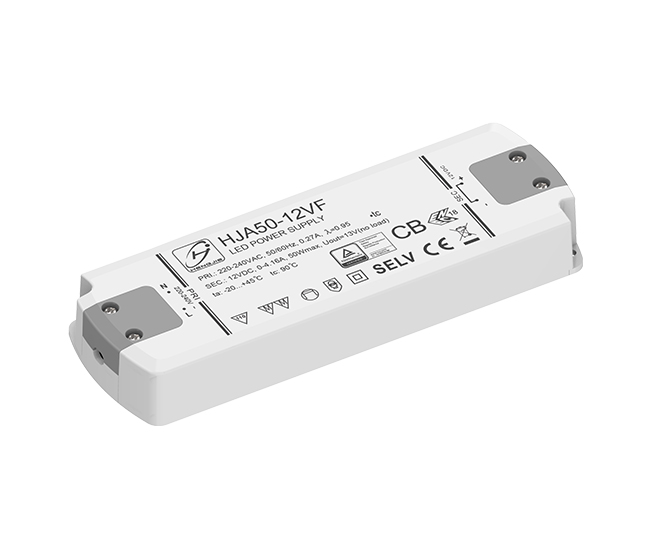

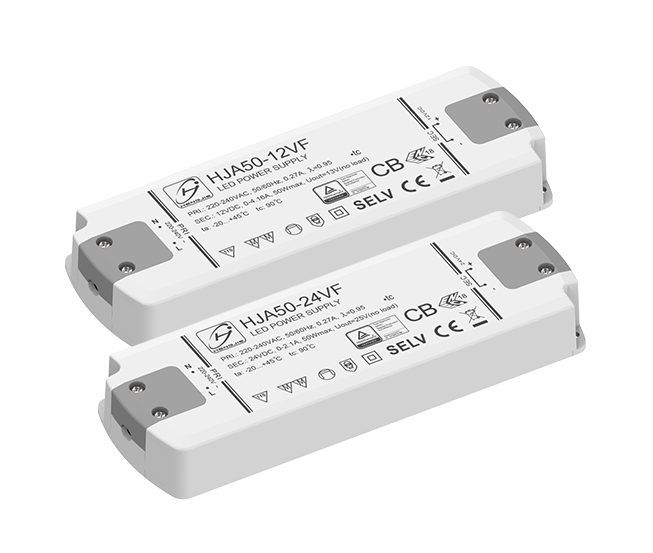

HJA50-12VF	220-240Vac	0.95	12V	0-4.16A	CV	-20…+45℃	90℃	166×56.7×22	ENEC TUV

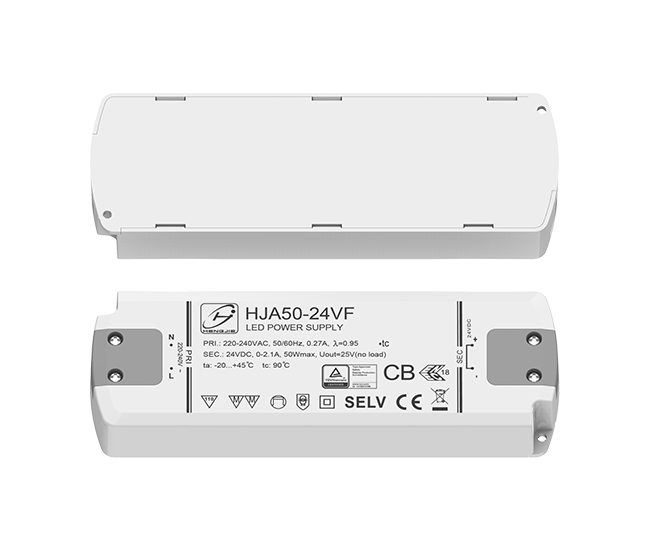

HJA50-24VF	220-240Vac	0.95	24V	0-2.1A	CV	-20…+45℃	90℃	166×56.7×22	ENEC TUV
