Water-Proof Series-6W

ITEM CODE

Rated Input

PF

Output voltage
（current）

Output voltage（current）range

CV/CC

Ta

Tc

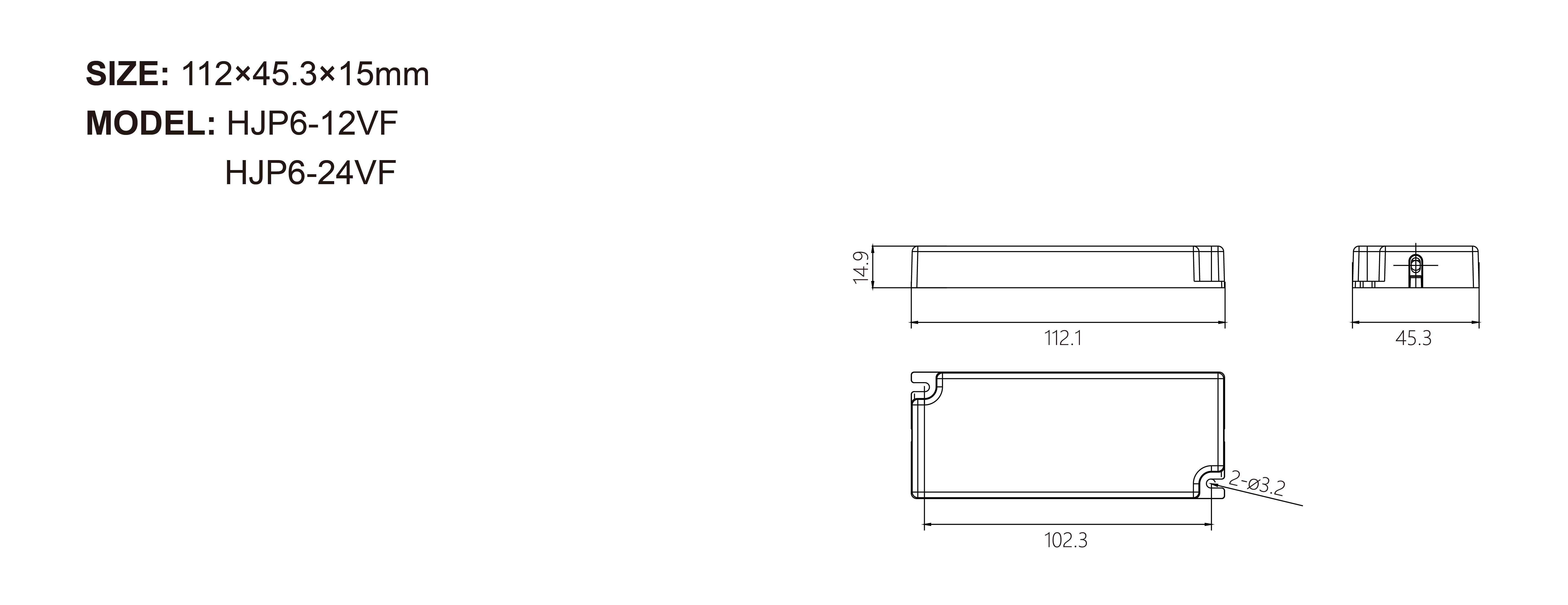

Size

Approval

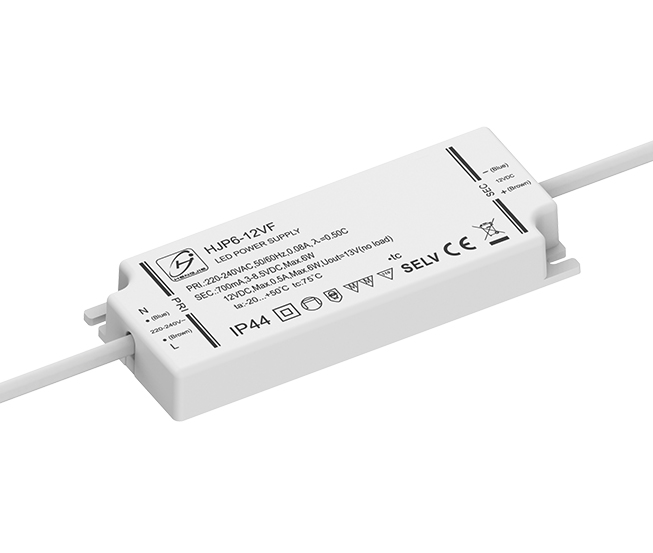

HJP6-12VF

220-240Vac

0.50C

12V          (for CV)
3-8.5V       (for CC)

0-0.5A         (for CV)
0.63-0.7A      (for CC)

CVCC

-20…+50℃

75℃

112×45×15

ENEC TUV

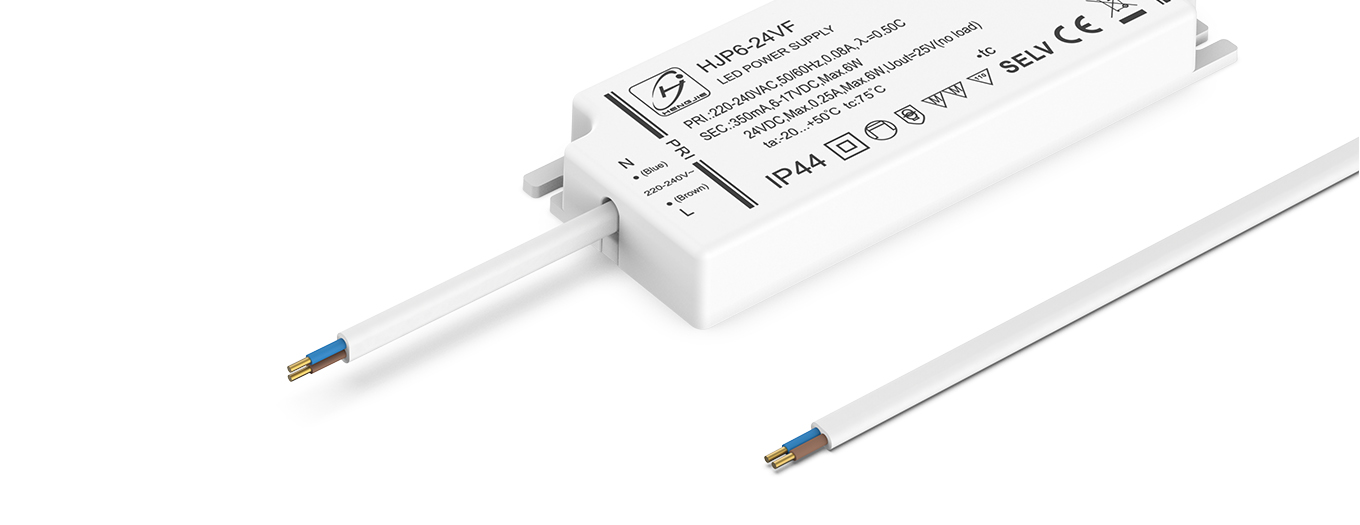

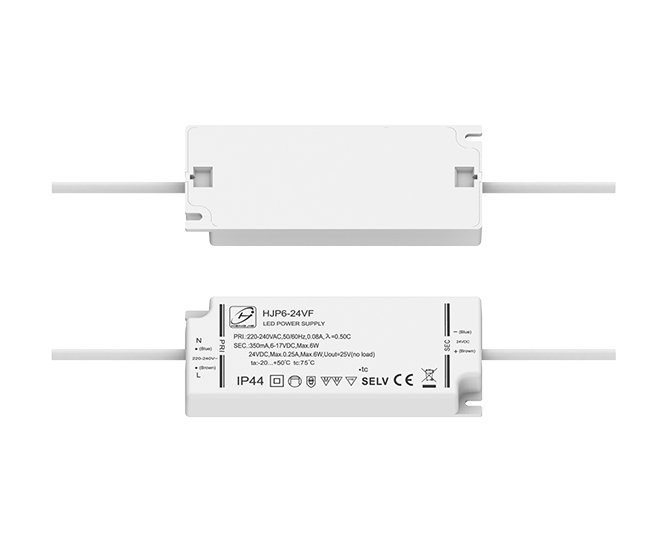

HJP6-24VF

220-240Vac

0.50C

24V          (for CV)
6-17V       (for CC)

0-0.25A        (for CV)
0.32-0.37A     (for CC)

CV

-20…+50℃

75℃

112×45×15

ENEC TUV
