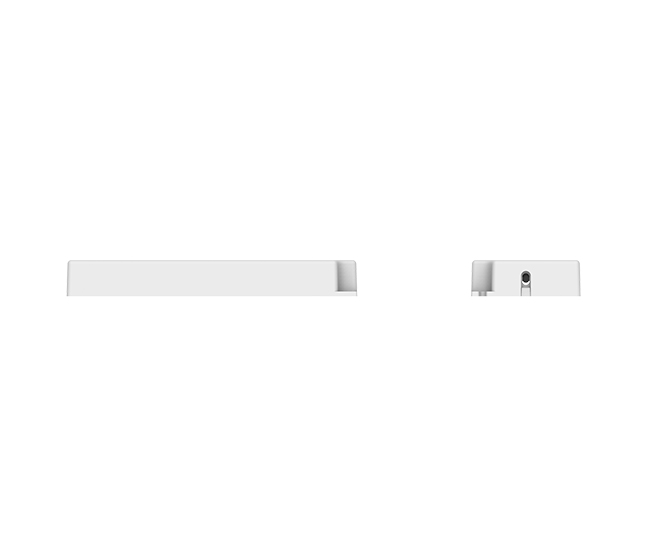

Water-Proof Series-15W

Feature

—Independent constant voltage LED power supply

—IP44 water-proof design

—Full protection functions with automatic recovery feature

—Fast start-up time ≤0.5s

—Protection class II, SELV output

—Eiciency:80%

—Compliance to ERP directive: COMMISSION REGULATION (EU) 2019/2020

—IP44

The Product (PDF)

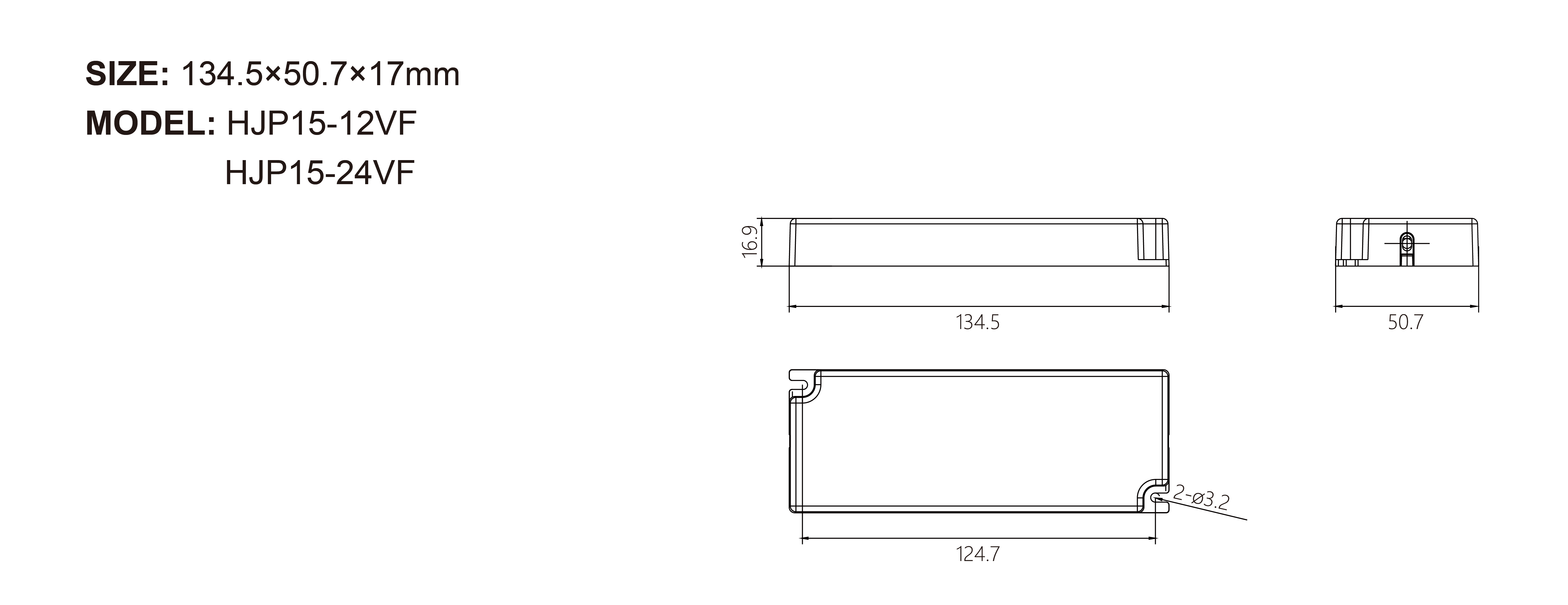

ITEM CODE	Rated Input	PF	Output voltage （current）	Output voltage（current）range	CV/CC	Ta	Tc	Size	Approval

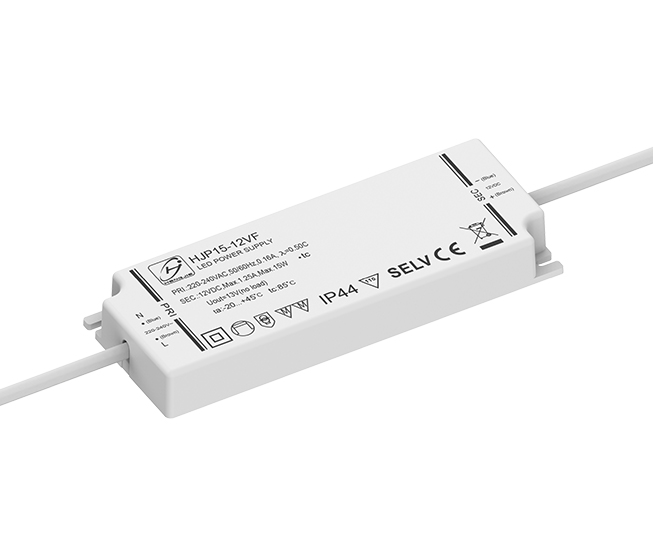

HJP15-12VF	220-240Vac	0.95	12V	0-1.25A	CV	-20…+45℃	90℃	134.5×51×17	ENEC TUV

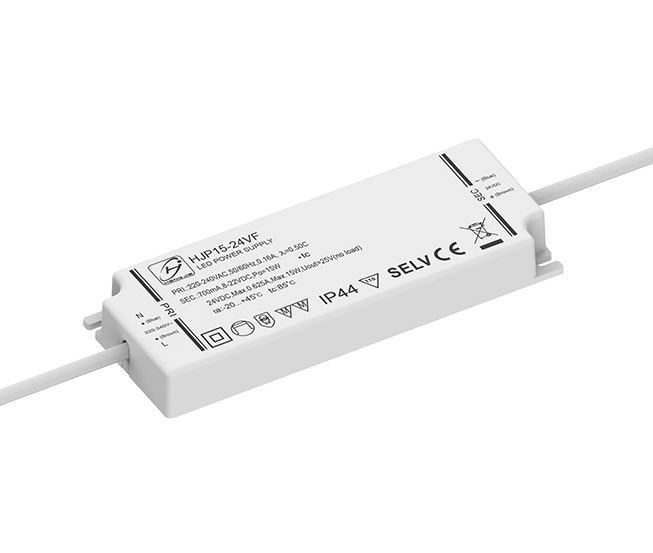

HJP15-24VF	220-240Vac	0.95	24V (for CV) 8-22V (for CC)	0-0.625A (for CV) 0.63-0.7A (for CC)	CV	-20…+45℃	85℃	134.5×51×17	ENEC TUV
