Intellgent Series-100W

Feature

—Constant voltage LED Driver

—High eficiency,Up to 92%

The output voltage could be PWM dimmed by IR/PIR sensor and remote controller

Fast startup<0.5s

Ultra-thin design ,the height is 17.5mm

Full protection functions with automatic recovery feature

Protection class II, SELV output

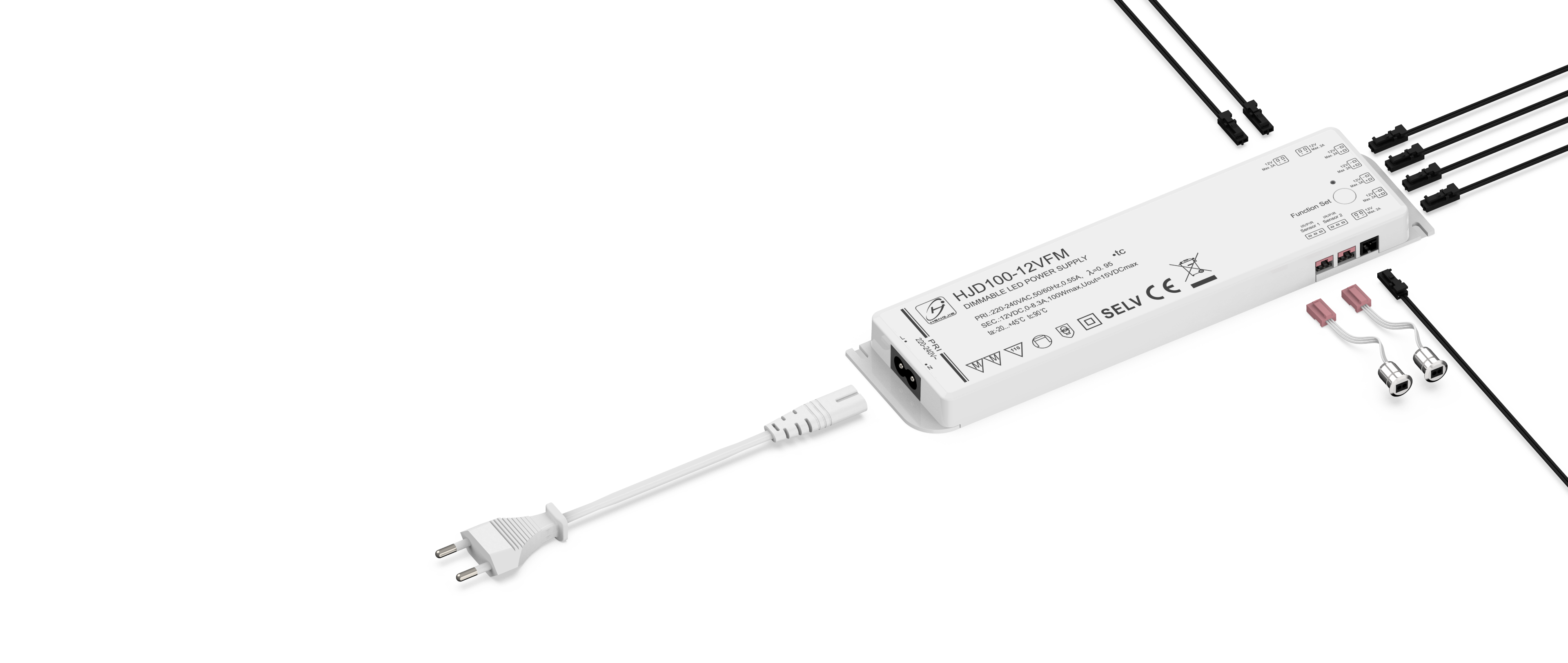

  • Application scenario

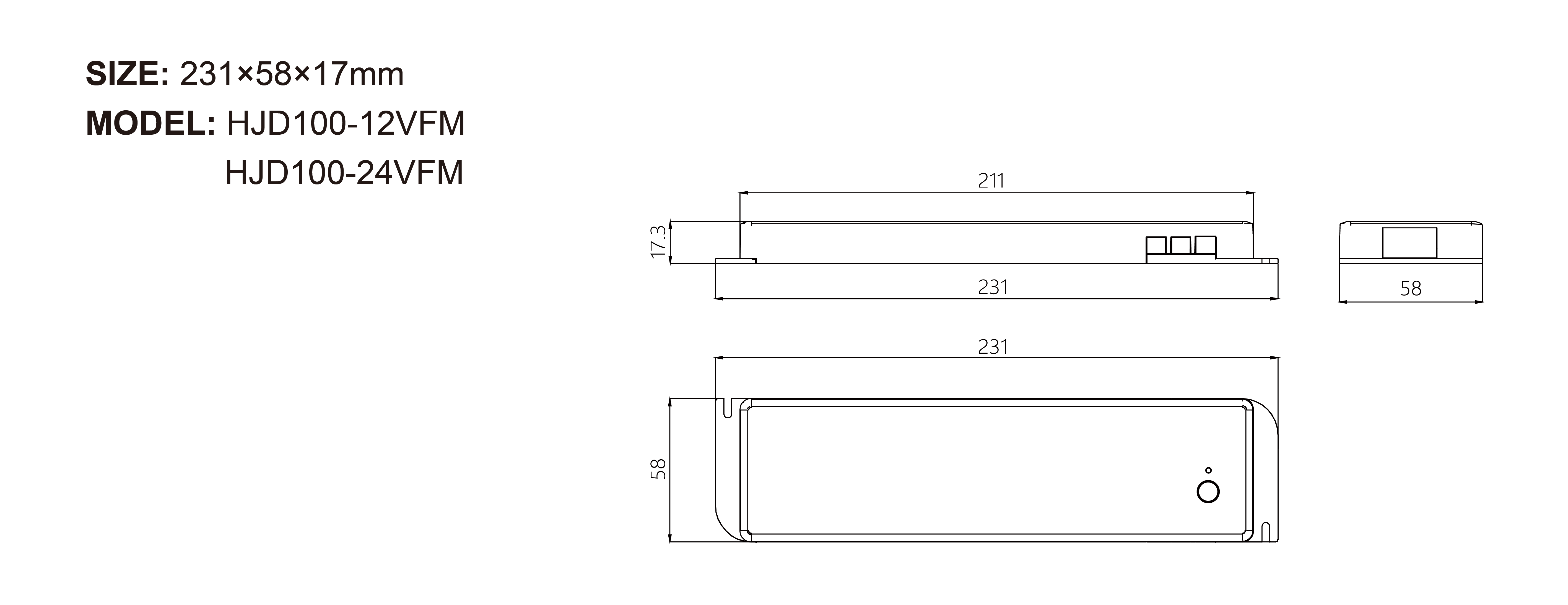

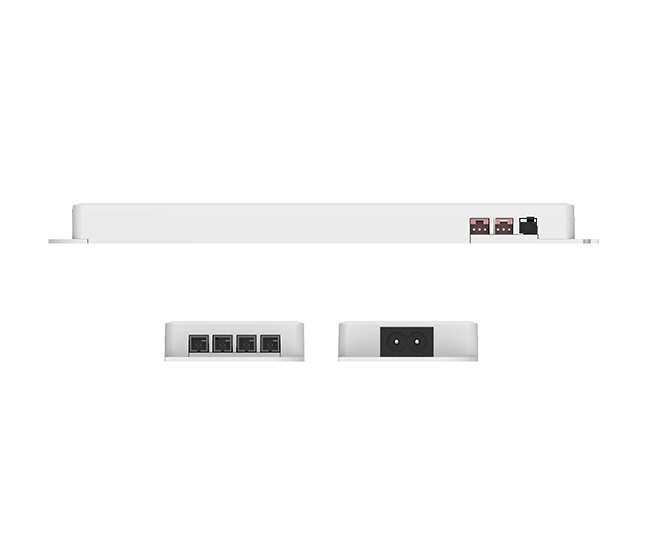

  • Size
  • Technic Data

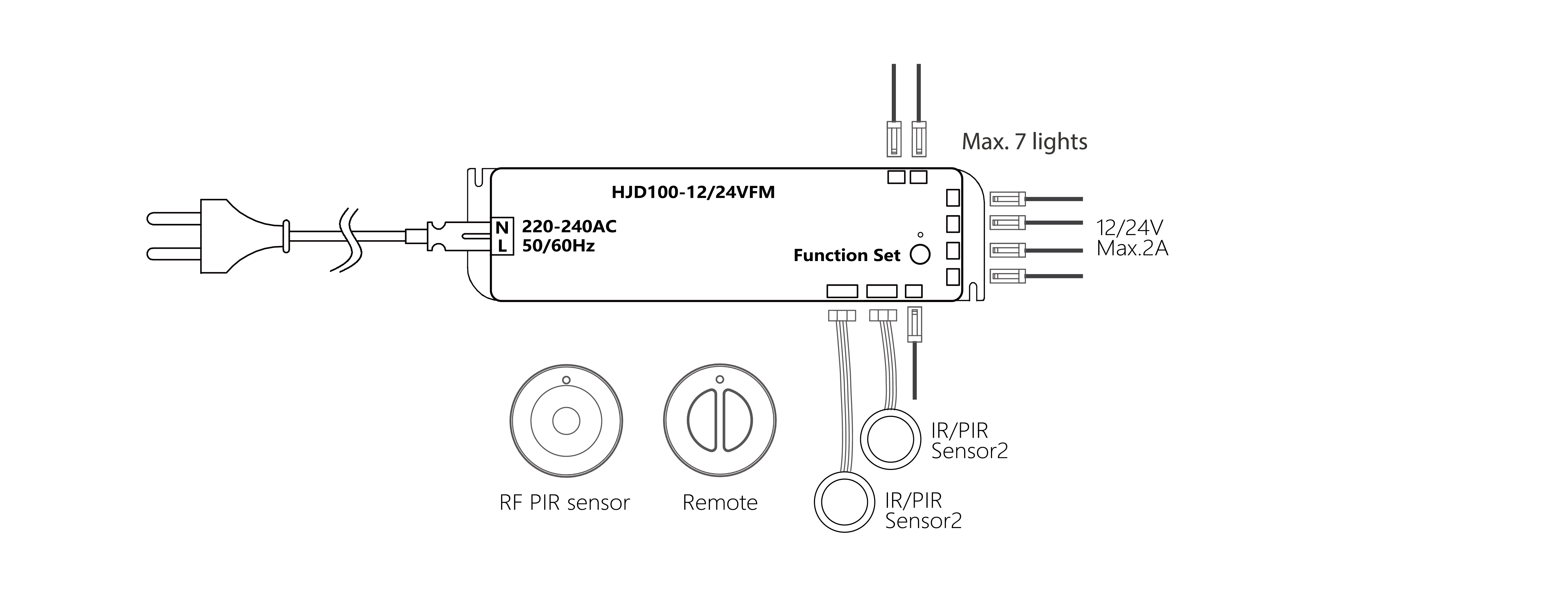

  • Installation

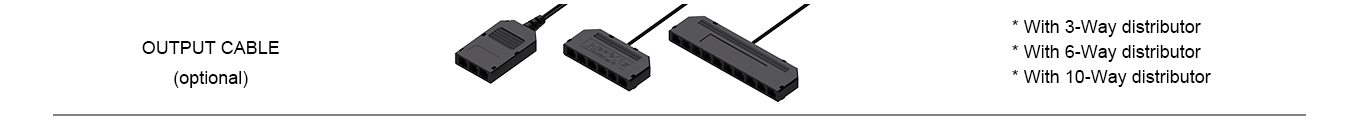

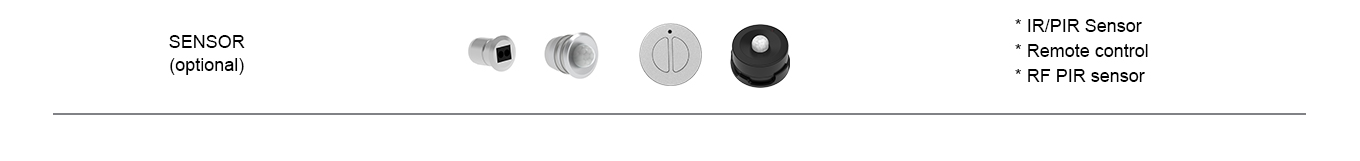

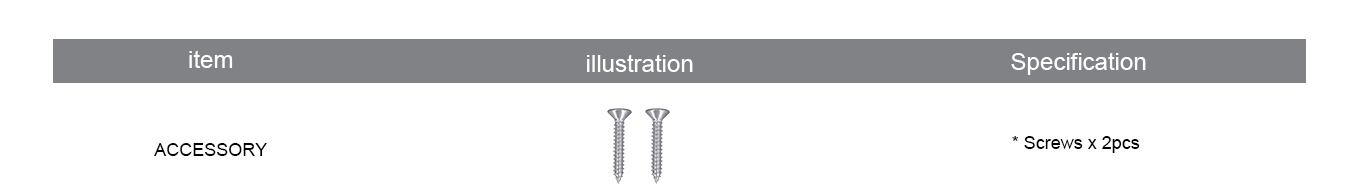

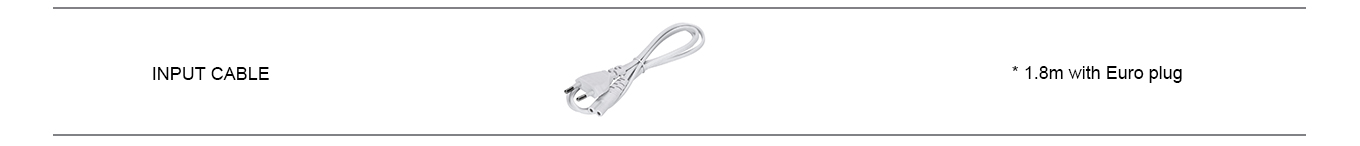

  • Accessories

ITEM CODE

Rated Input

PF

Output voltage
(current)

Output voltage(current)range

CV/CC

Ta

Tc

Size

Power

HJD100-12VFM

220-240Vac

0.95

12V

0-8.33A

CV

-20…+45℃

90℃

231×58×17

100W

HJD100-24VFM

220-240Vac

0.95

24V

0-4.16A

CV

-20…+45℃

90℃

231×58×17

100W
