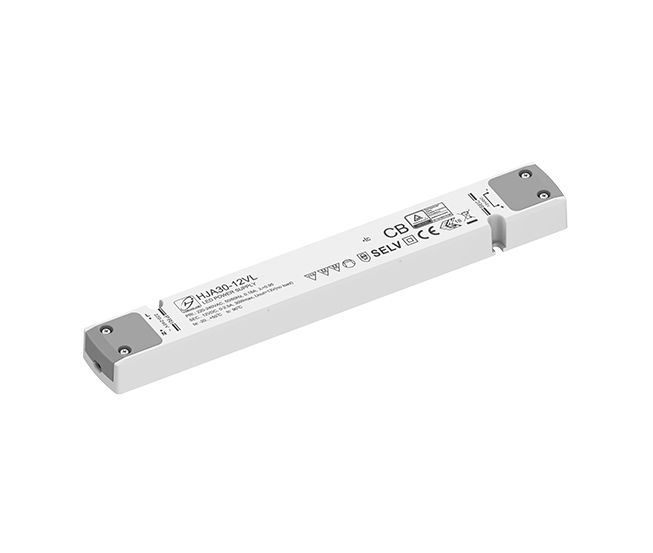

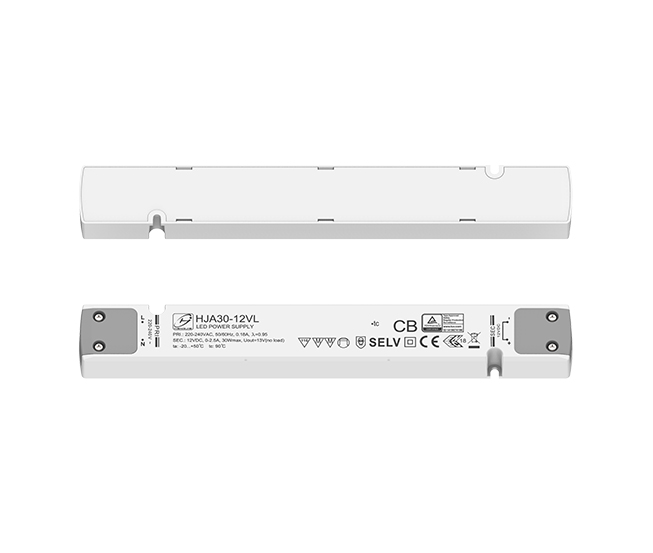

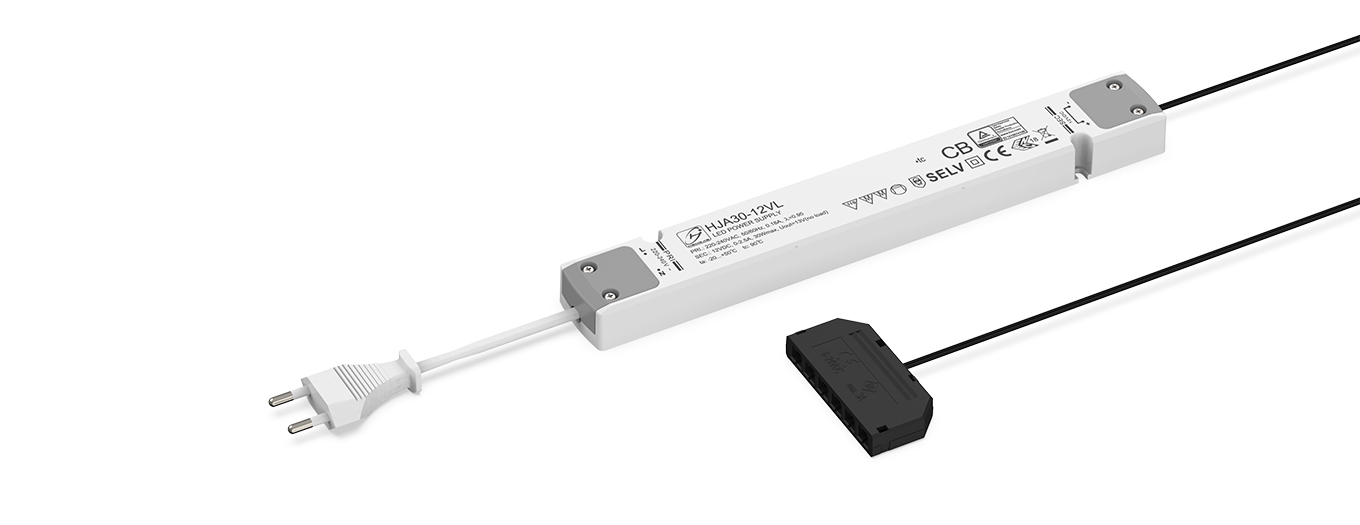

Linear Series-30W

Feature

—Independent constant voltage LED power supply

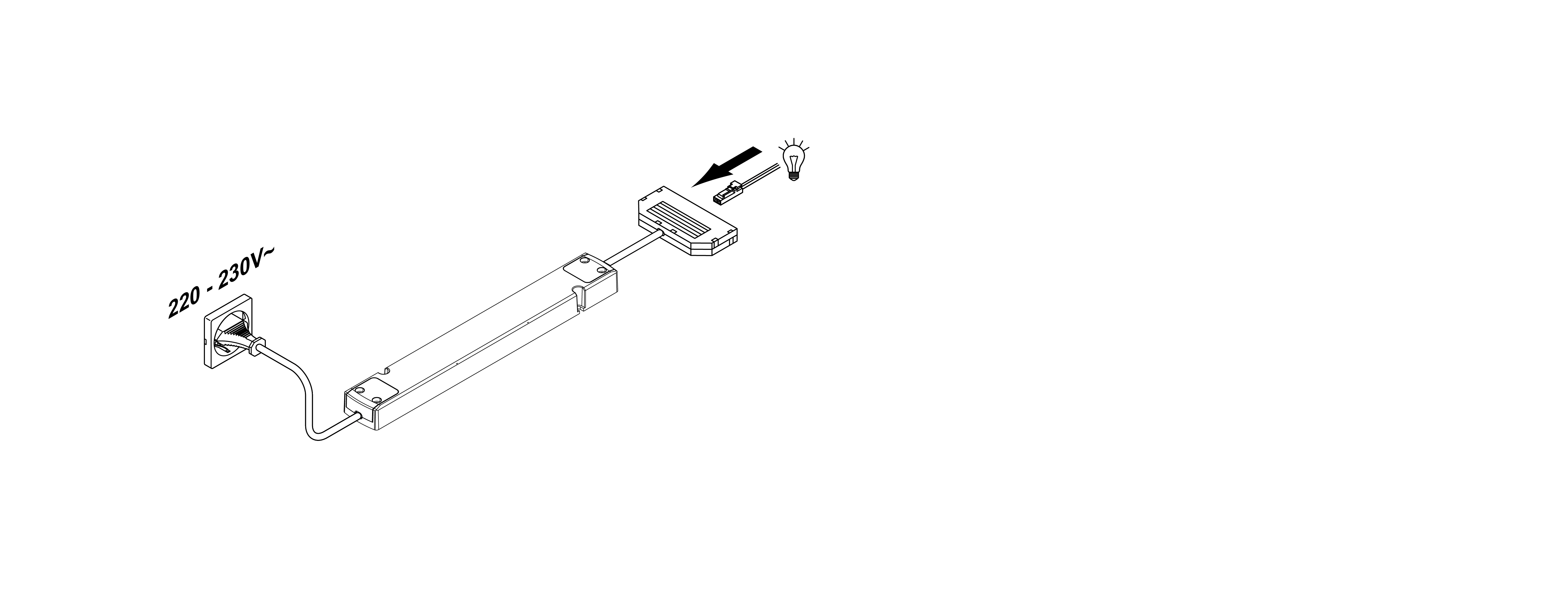

—Terminal block for quick connection

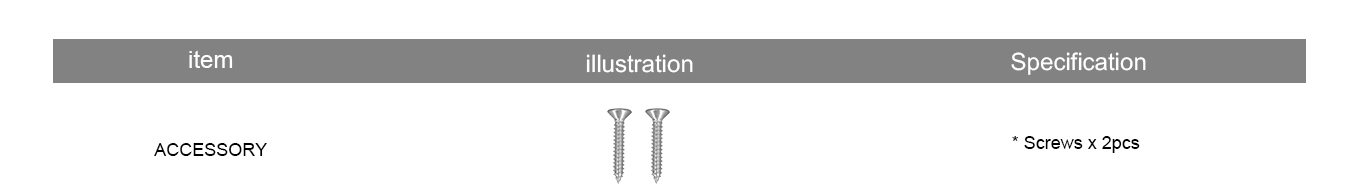

—Driver can be secured with slot for screws

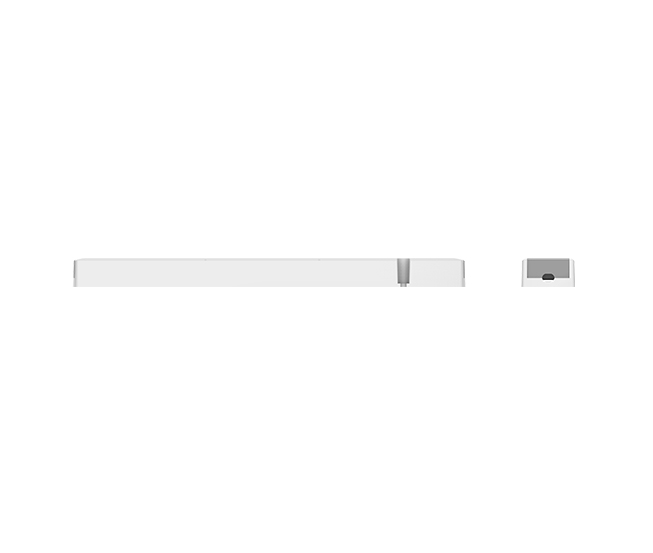

—Ultra-thin design, the height is 16mm

—Full protection functions with automatic recovery feature

—Fast start-up time ≤0.5s

—Protection class II, SELV output

—Efficiency: 84.5%

—Compliance to ERP directive: COMMISSION REGULATION (EU) 2019/2020

The Product (PDF)

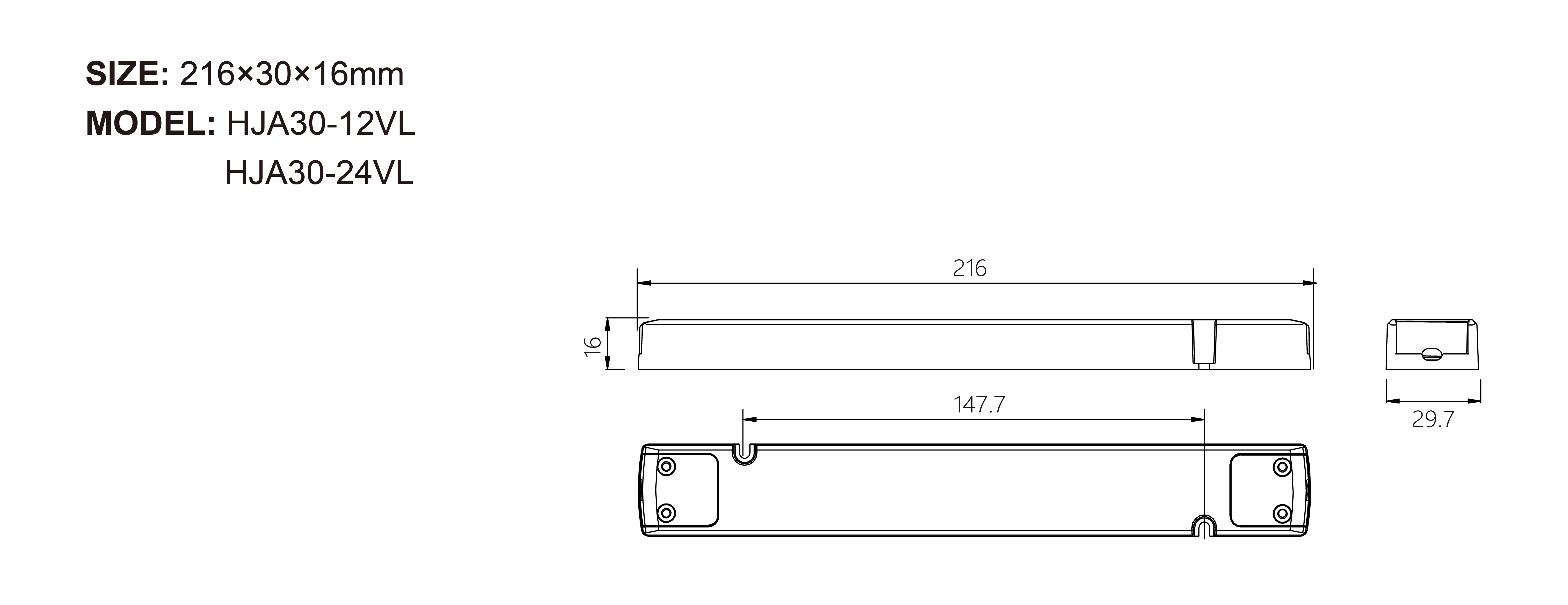

ITEM CODE	Rated Input	PF	Output voltage （current）	Output voltage（current）range	CV/CC	Ta	Tc	Size	Approval

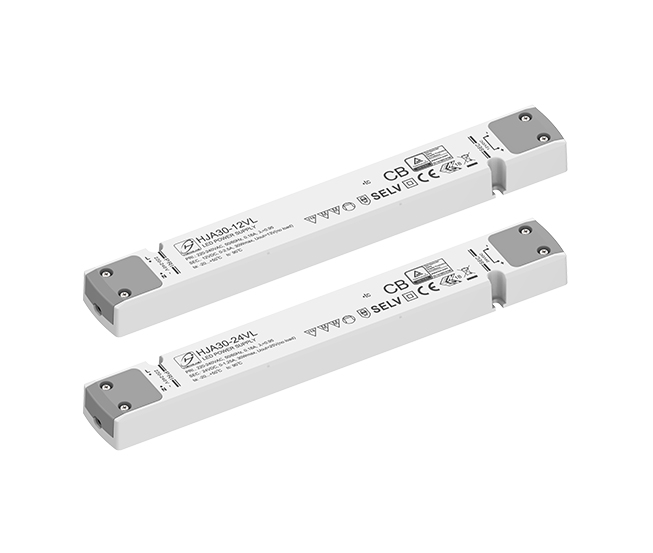

HJA30-12VL	220-240Vac	0.95	12V	0-2.5A	CV	-20…+50℃	90℃	216×30×16	ENEC TUV CCC
HJA30-24VL	220-240Vac	0.95	24V	0-1.25A	CV	-20…+50℃	90℃	216×30×16	ENEC TUV CCC
