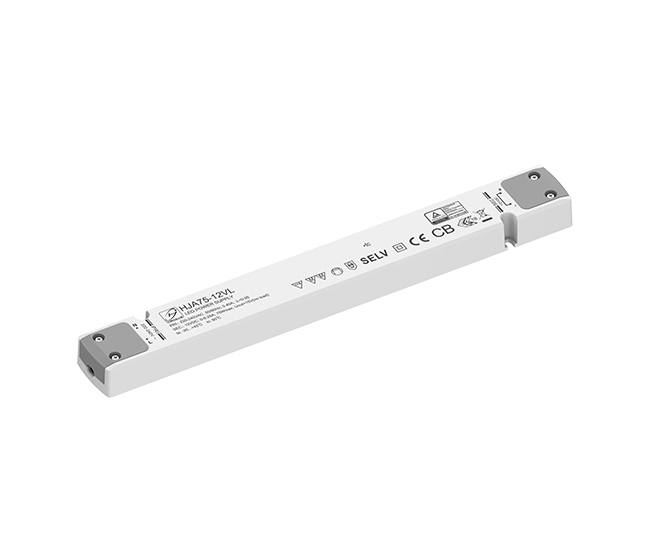

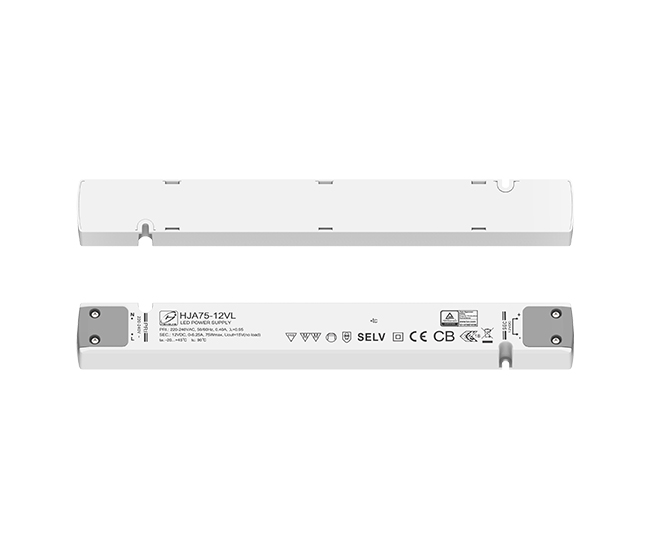

Linear Series-75W

Feature

—Independent constant voltage LED power supply

Terminal block for quick connection

Driver can be secured with slot for screws

Ultra-thin design, the height is 16mm

Full protection functions with automatic recovery feature

Fast start-up time ≤0.5s

Protection class II, SELV output

Efficiency: 84.5%

Compliance to ERP directive: COMMISSION REGULATION (EU) 2019/2020

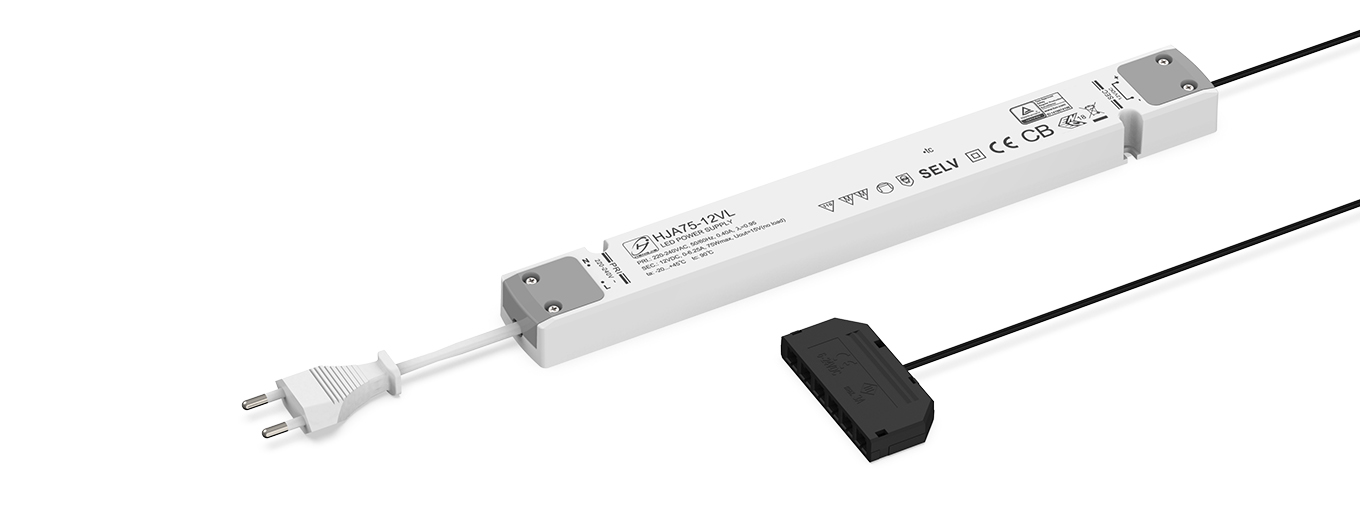

  • Application scenario

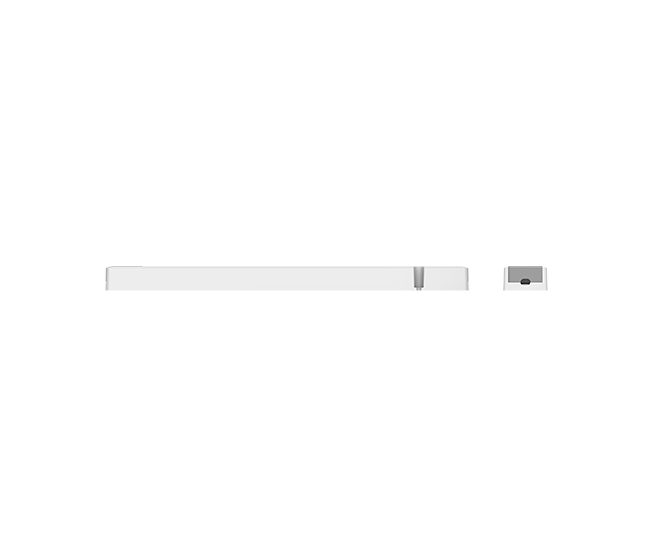

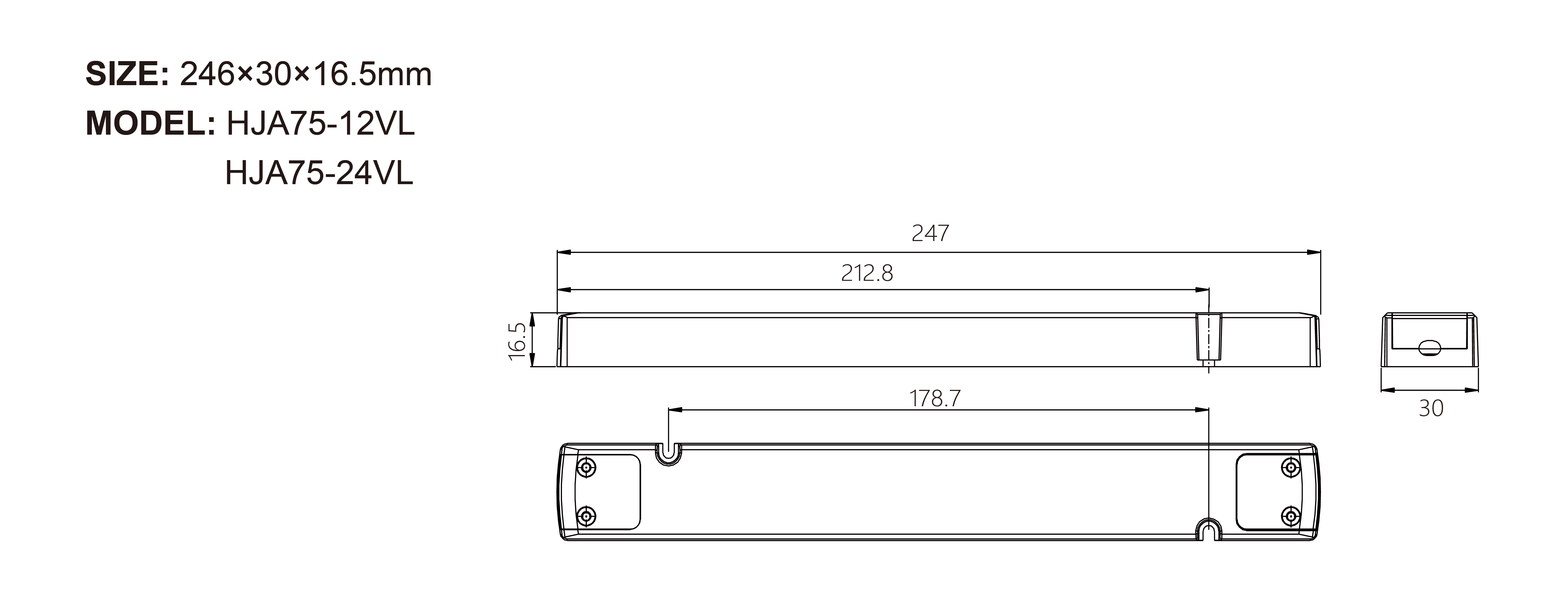

  • Size
  • Technic Data

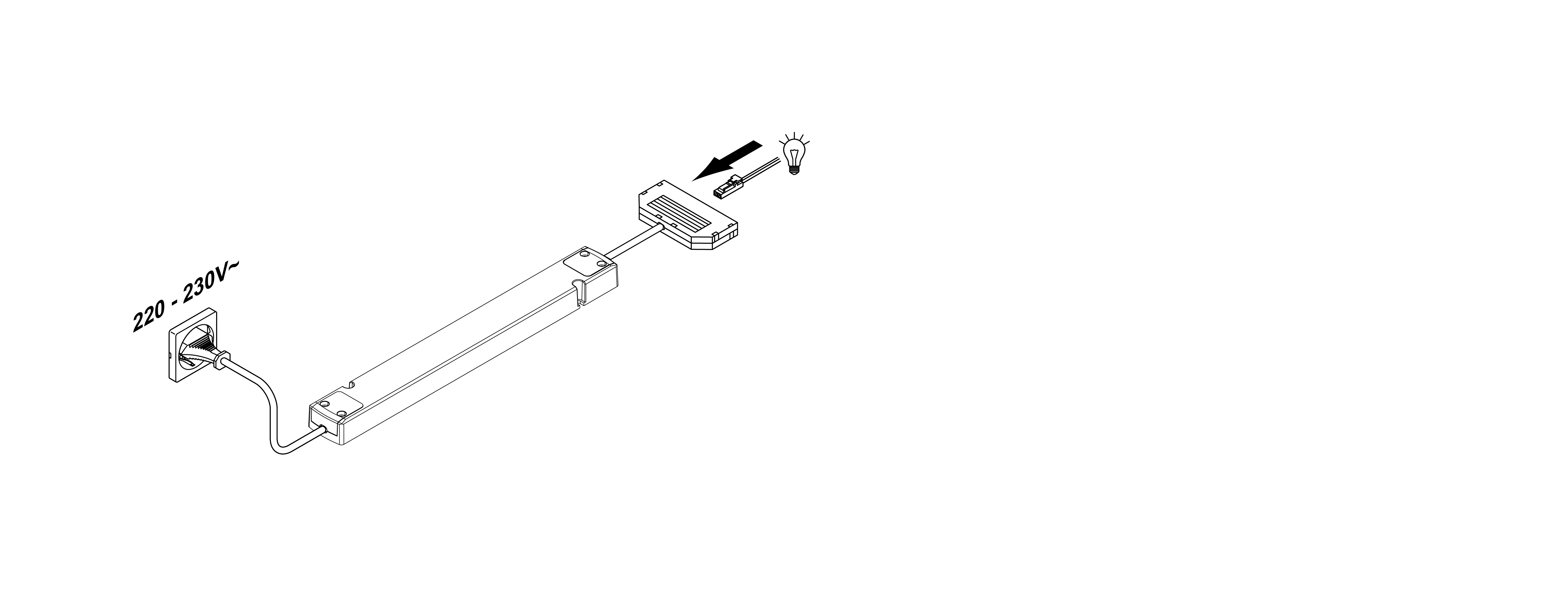

  • Installation

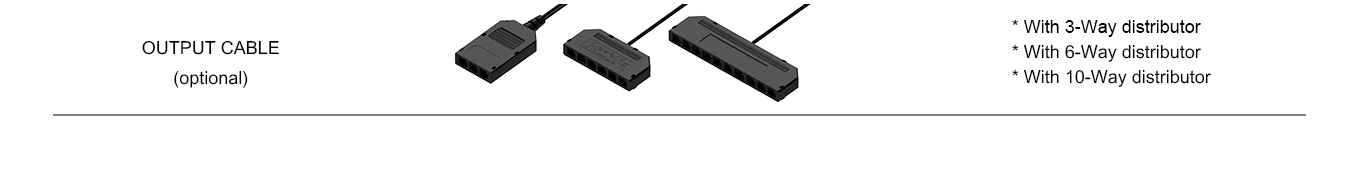

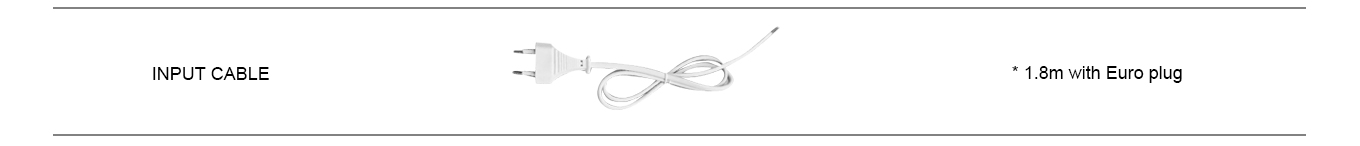

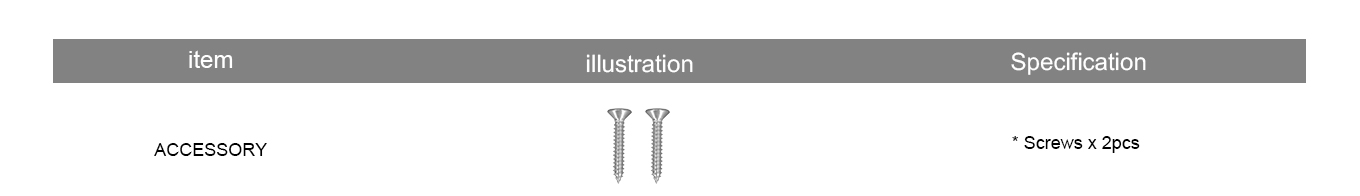

  • Accessories

ITEM CODE

Rated Input

PF

Output voltage
(current)

Output voltage(current)range

CV/CC

Ta

Tc

Size

Approval

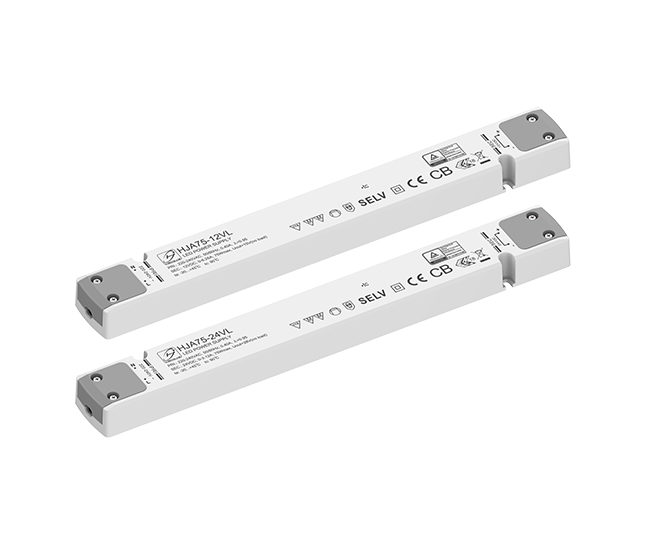

HJA75-12VL/-1

220-240Vac

0.95

12V

0-6.25A

CV

-20…+45℃

90℃

247×30×16.5

ENEC TUV  CCC

HJA75-24VL/-1

220-240Vac

0.95

24V

0-3.125A

CV

-20…+45℃

90℃

247×30×16.5

ENEC TUV  CCC
