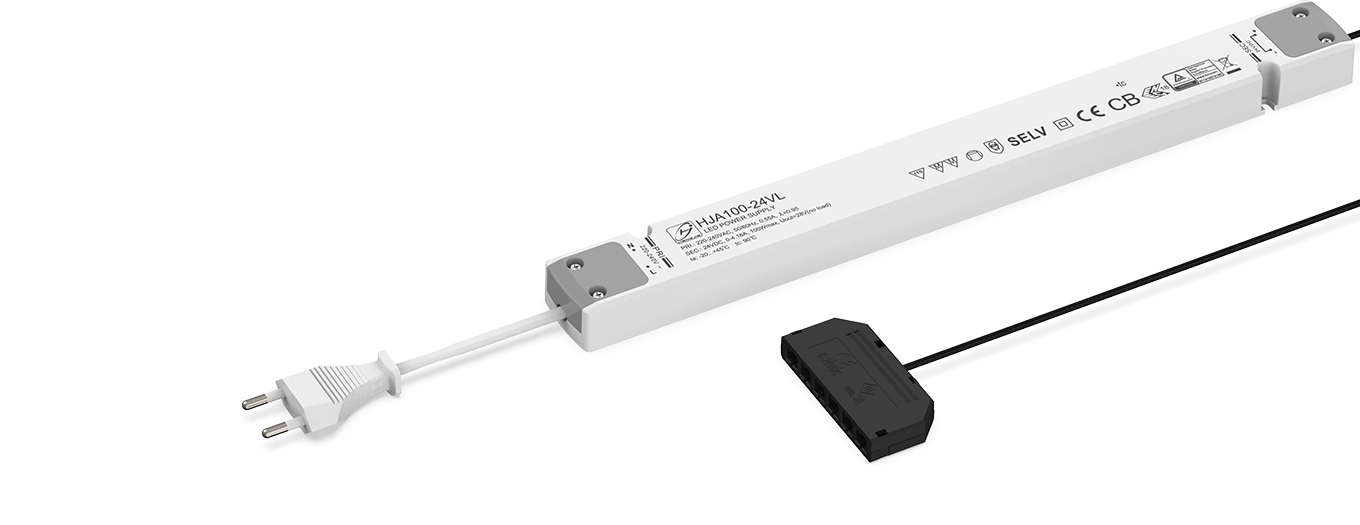

Linear Series-100W

Feature


—Independent constant voltage LED power supply


Terminal block for quick connection

Driver can be secured with slot for screws

Ultra-thin design, the height is 16mm

Full protection functions with automatic recovery feature

Fast start-up time ≤0.5s

Protection class II, SELV output

Efficiency: 84.5%

Compliance to ERP directive: COMMISSION REGULATION (EU) 2019/2020

  • Application scenario

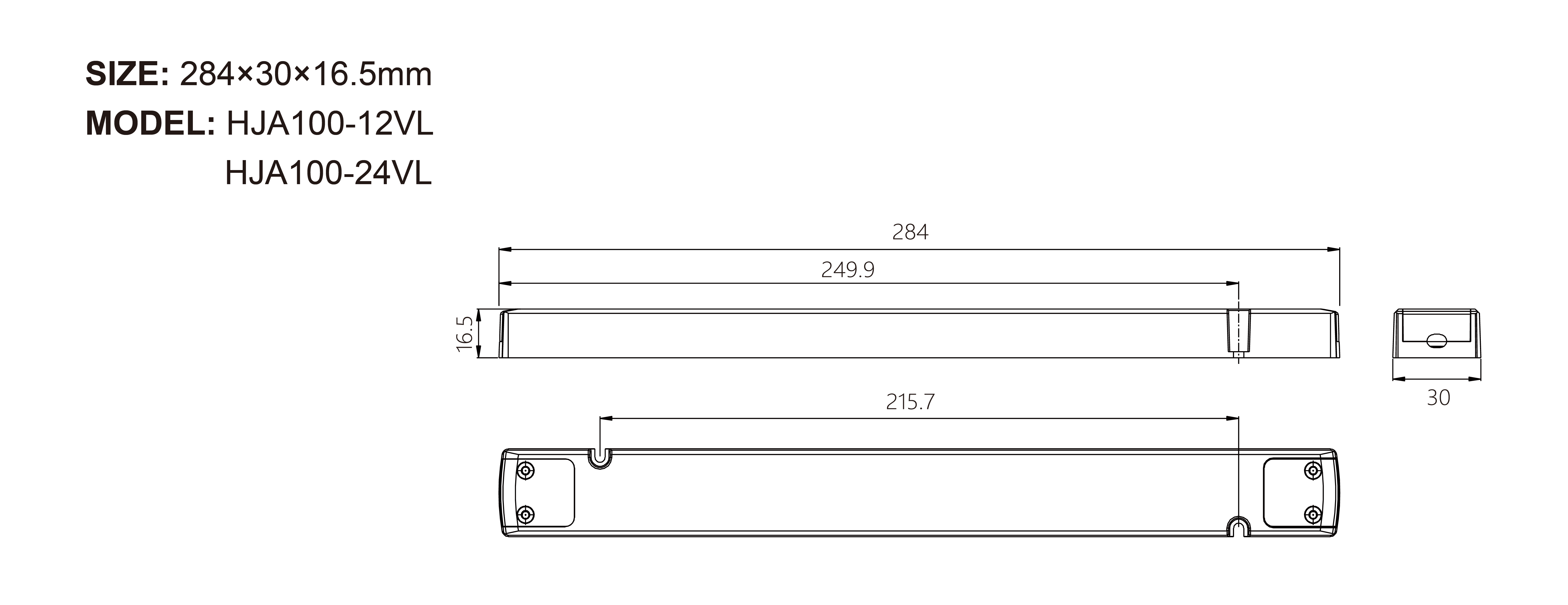

  • Size
  • Technic Data

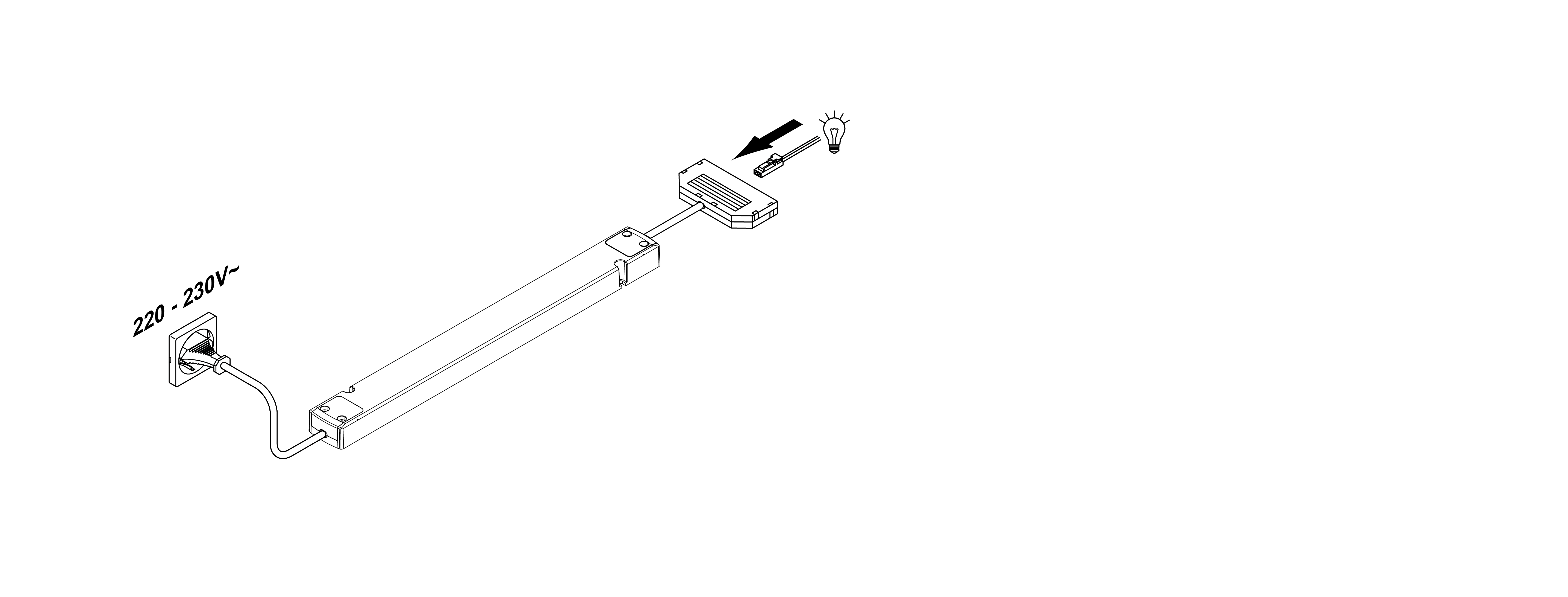

  • Installation

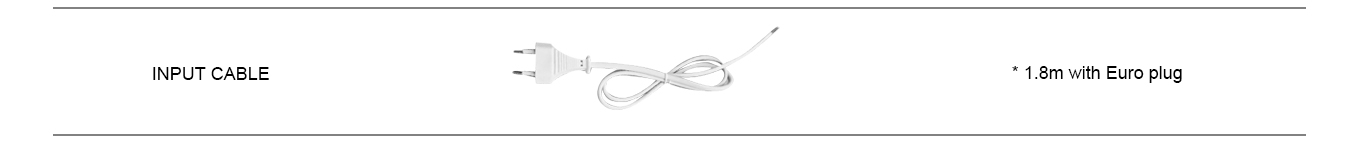

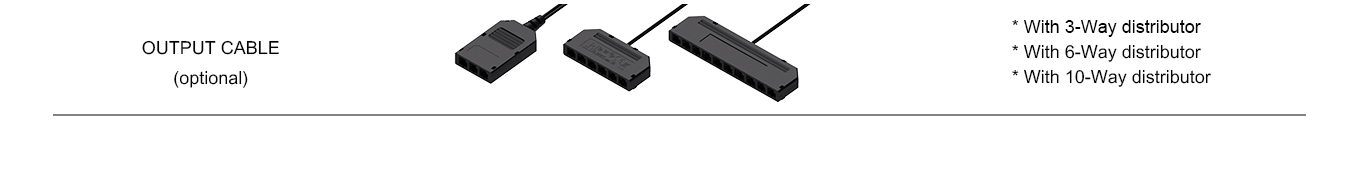

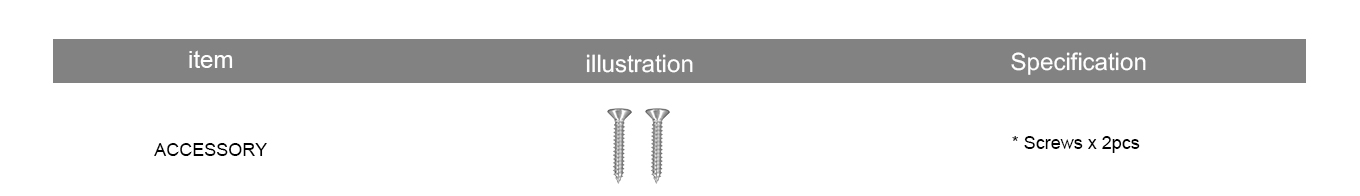

  • Accessories

ITEM CODE

Rated Input

PF

Output voltage
(current)

Output voltage(current)range

CV/CC

Ta

Tc

Size

Approval

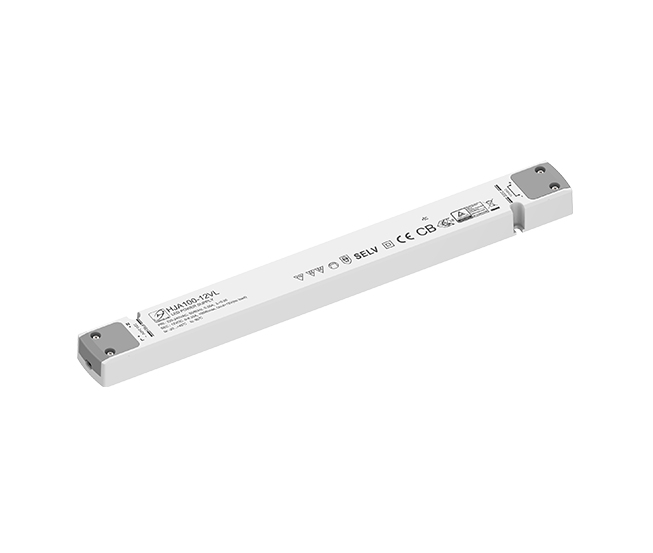

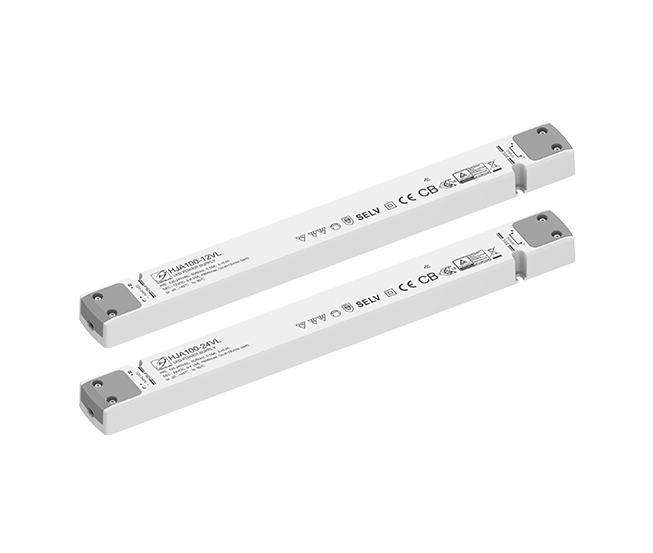

HJA100-12VL/-1

220-240Vac

0.95

12V

0-8.33A

CV

-20…+45℃

90℃

284×30×16.5

ENEC TUV  CCC

HJA100-24VL/-1

220-240Vac

0.95

24V

0-4.16A

CV

-20…+45℃

90℃

284×30×16.5

ENEC TUV  CCC
