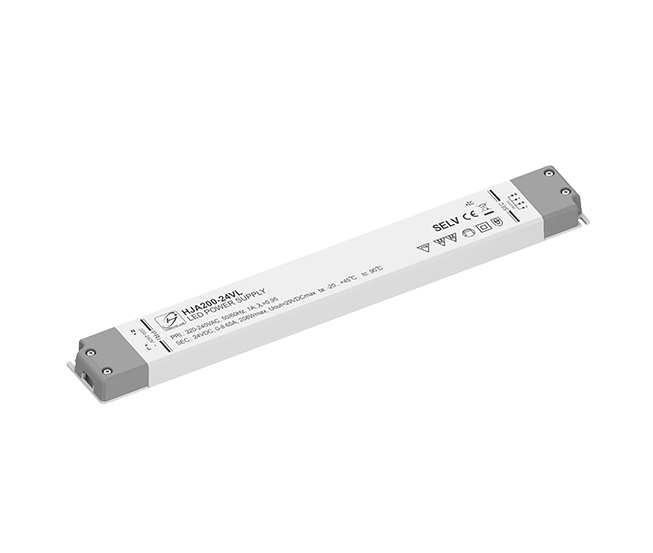

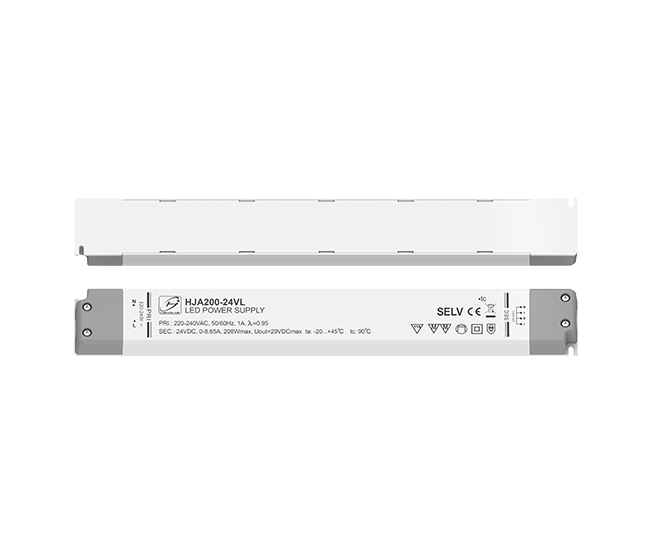

Linear Series-200W

Feature

—Independent constant voltage LED power supply

—Terminal block for quick connection
—Driver can be secured with slot for screws
—Ultra-thin design ,the height is 18mm
—Full protection functions with automatic recovery feature
—Fast start-up time ≤0.5s
—Protection class II, SELV output
—High eiciency,Up to 94% (230Vac)
—Compliance to ERP directive: COMMISSION REGULATION (EU) 2019/2020

The Product (PDF)

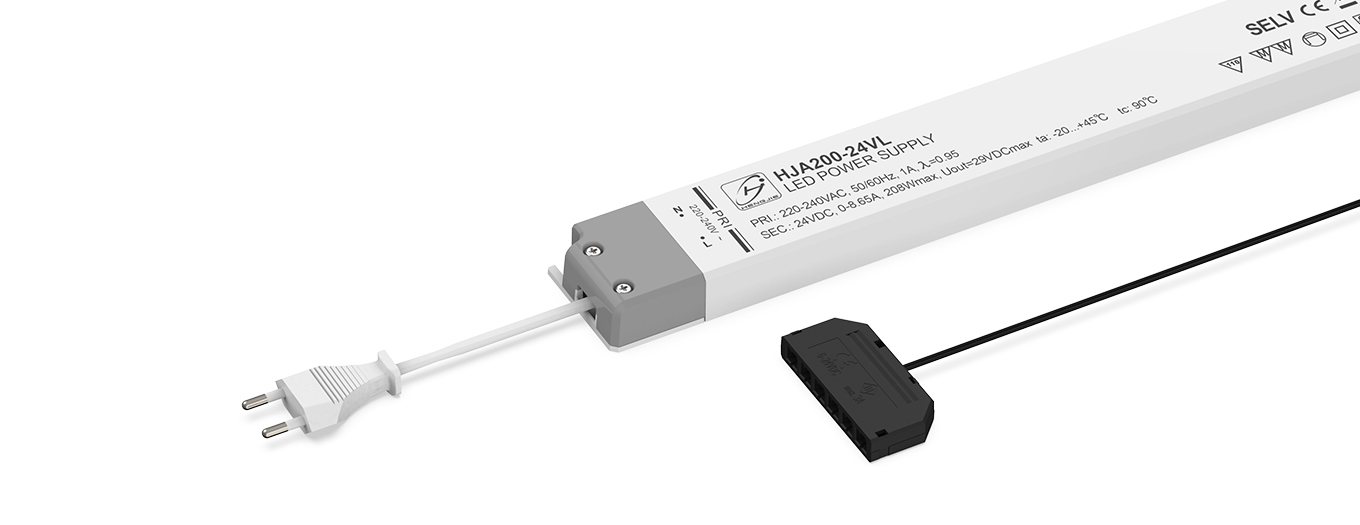

Application scenario

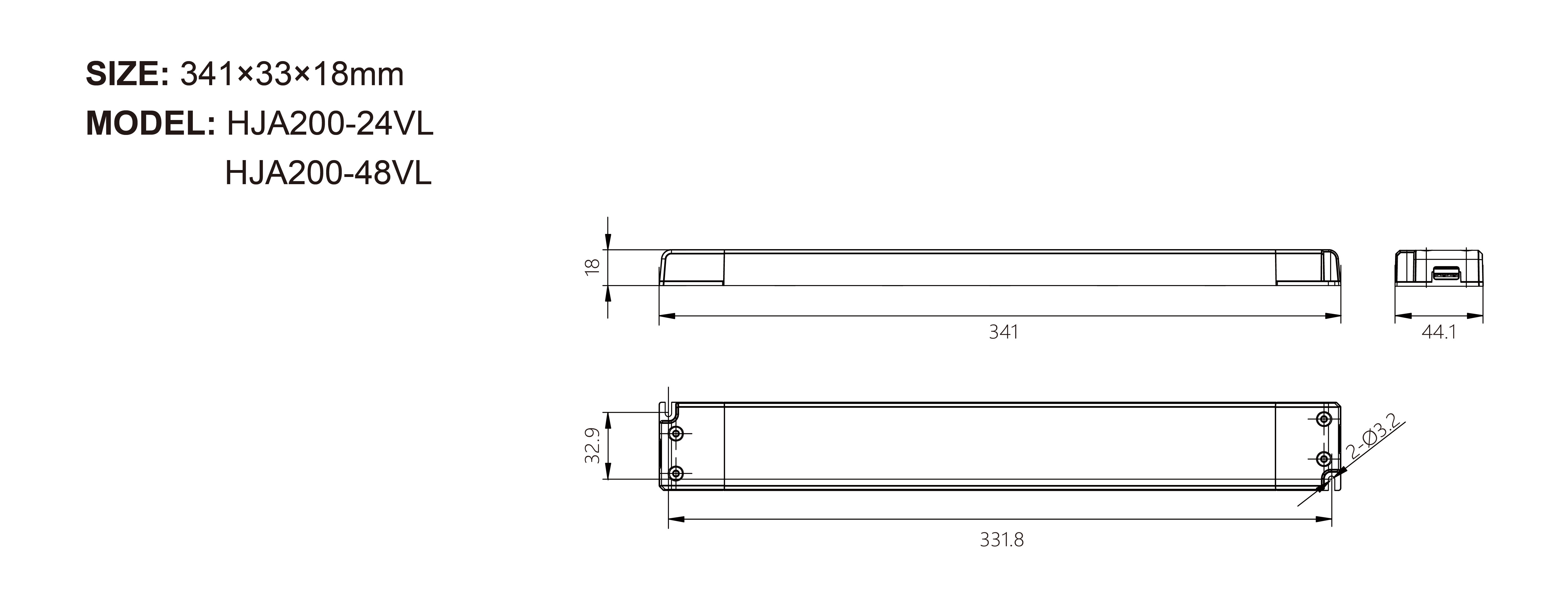

Size
Technic Data

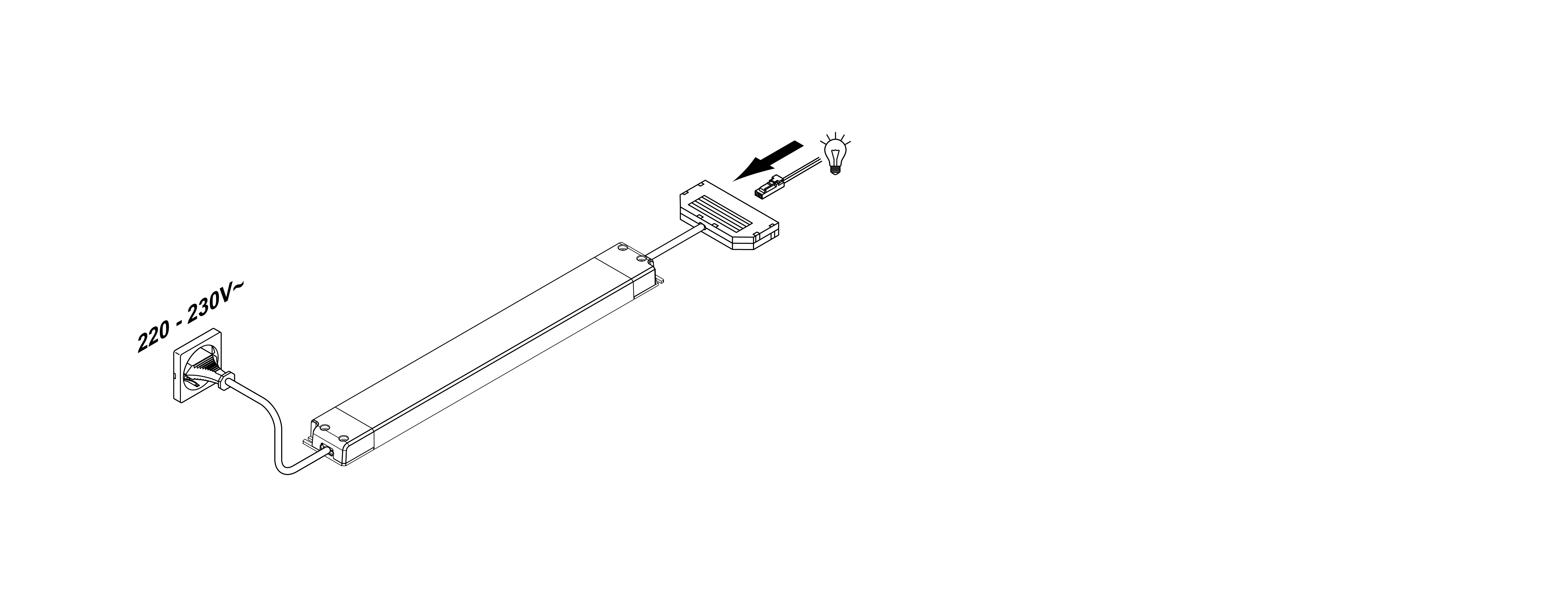

Installation

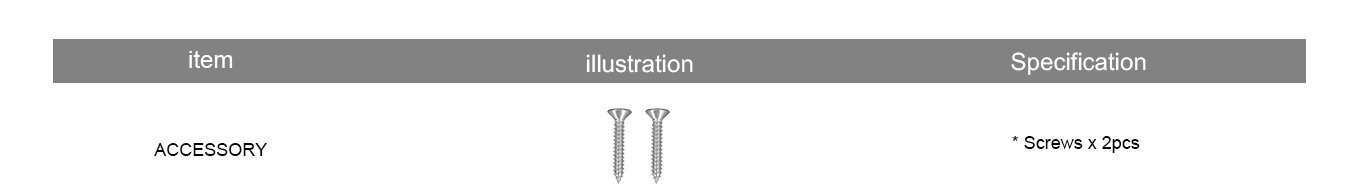

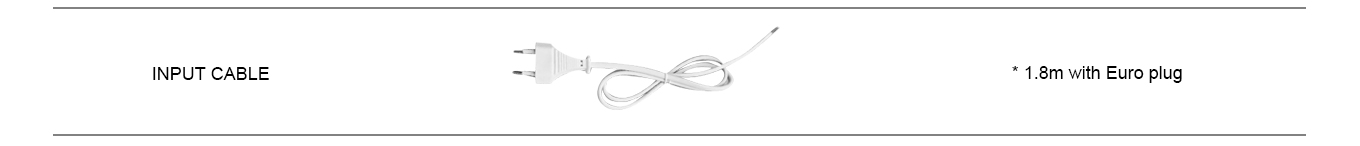

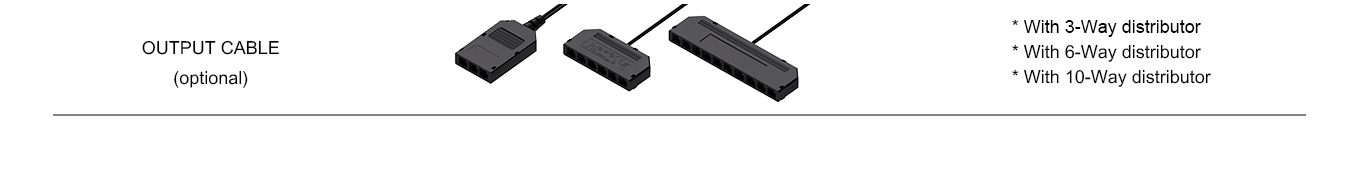

Accessories

ITEM CODE	Rated Input	PF	Output voltage （current）	Output voltage（current）range	CV/CC	Ta	Tc	Size	Approval
HJA200-24VL	120-240Vac	0.95	24V	0-8.33A	CV	-20…+45℃	90℃	341×44×18	ENEC
HJA200-48VL	120-240Vac	0.95	48V	0-4.17A	CV	-20…+45℃	90℃	341×44×18	ENEC
