Linear Series-150W

Feature

—Independent constant voltage LED power supply

Terminal block for quick connection

Driver can be secured with slot for screws

Ultra-thin design ,the height is 18mm

Full protection functions with automatic recovery feature

Fast start-up time ≤0.5s

Protection class II, SELV output

High eiciency,Up to 94% (230Vac)

Compliance to ERP directive: COMMISSION REGULATION (EU) 2019/2020

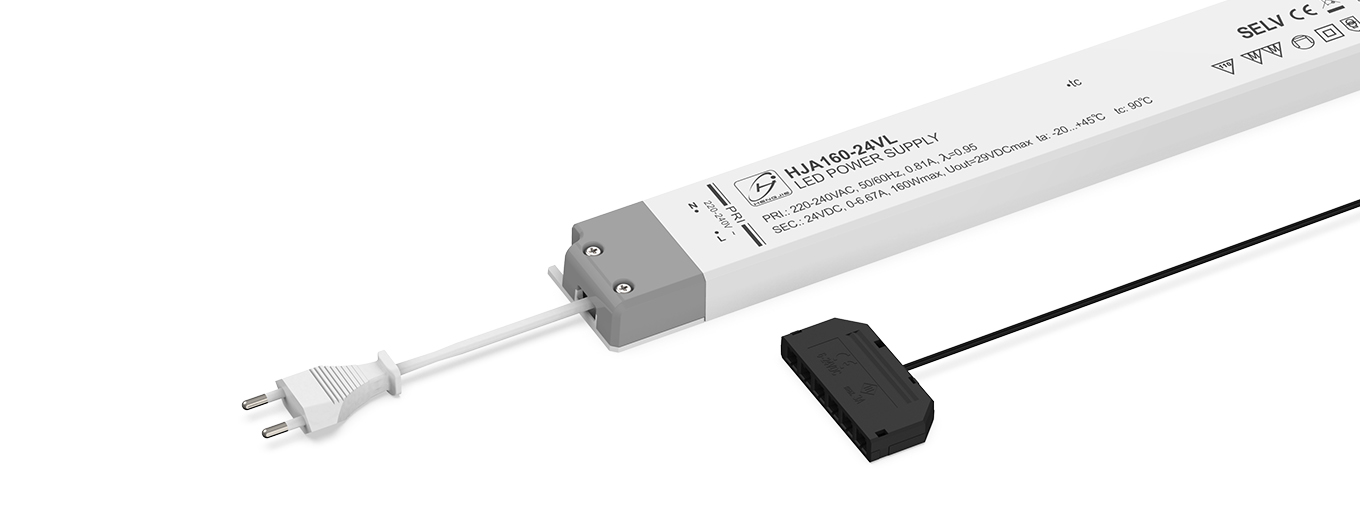

  • Application scenario

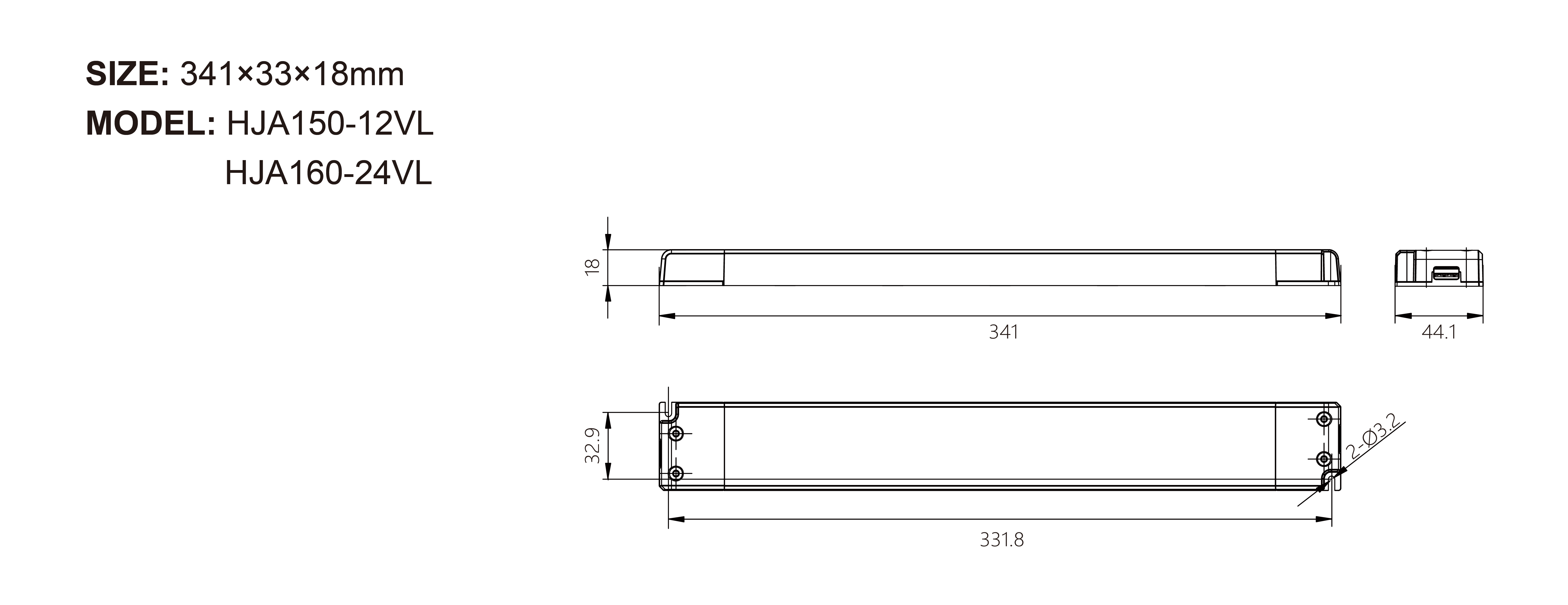

  • Size
  • Technic Data

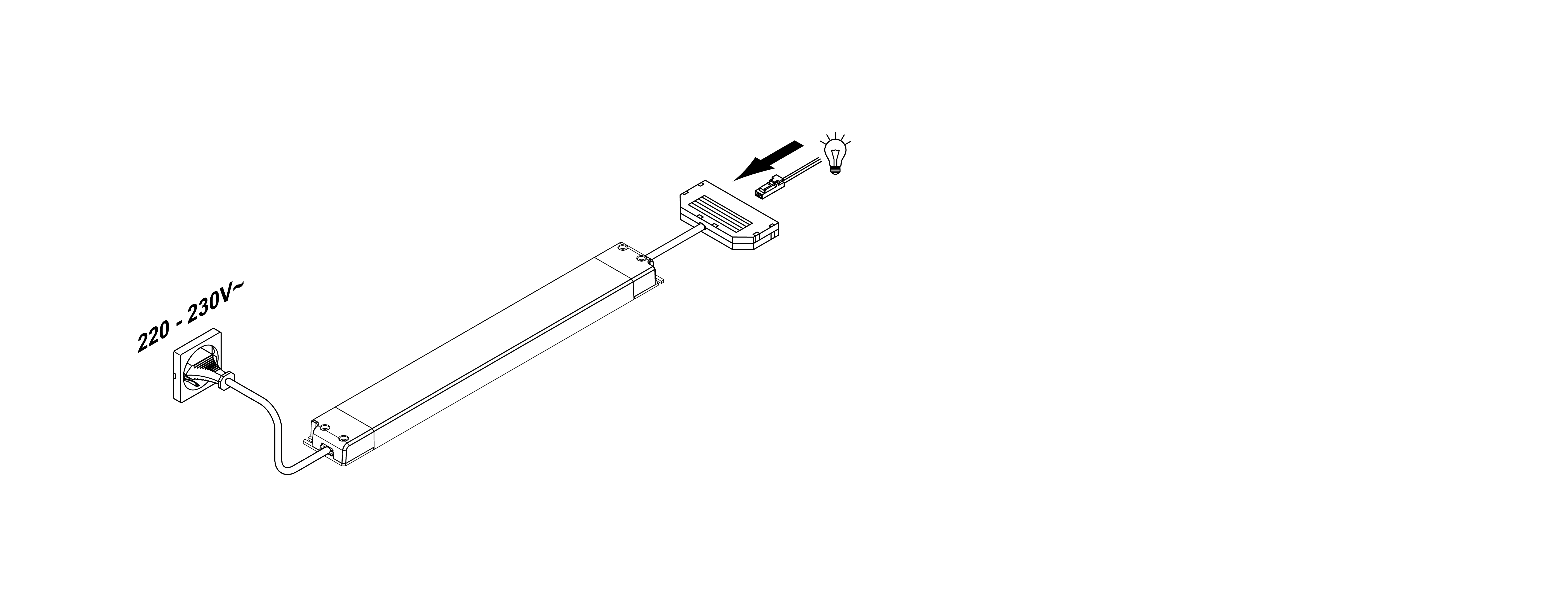

  • Installation

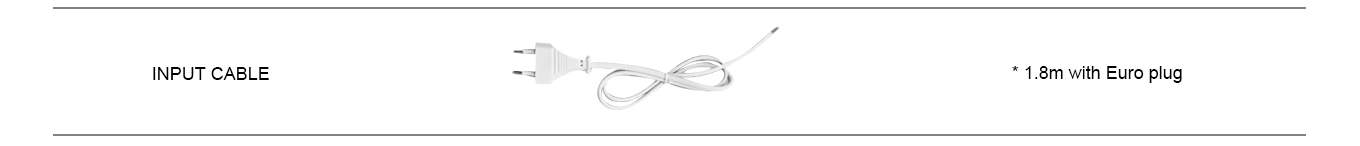

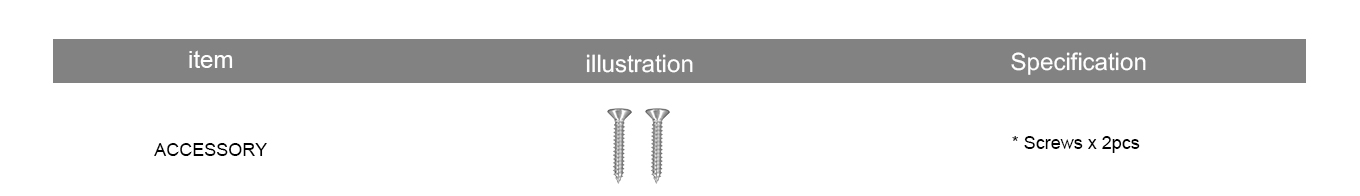

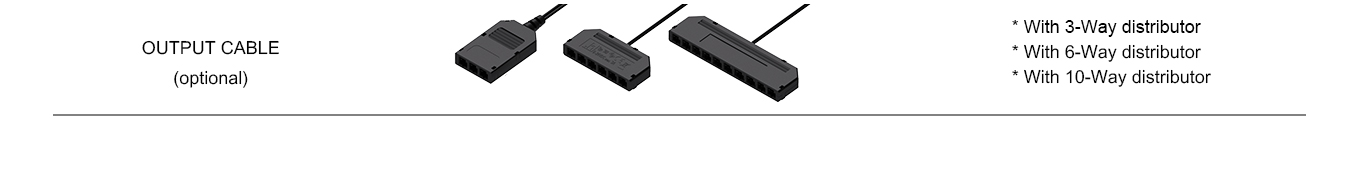

  • Accessories

ITEM CODE

Rated Input

PF

Output voltage
(current)

Output voltage(current)range

CV/CC

Ta

Tc

Size

Approval

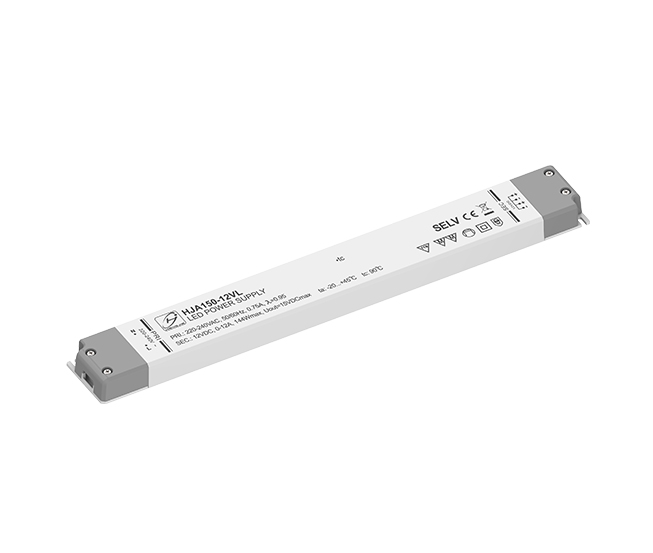

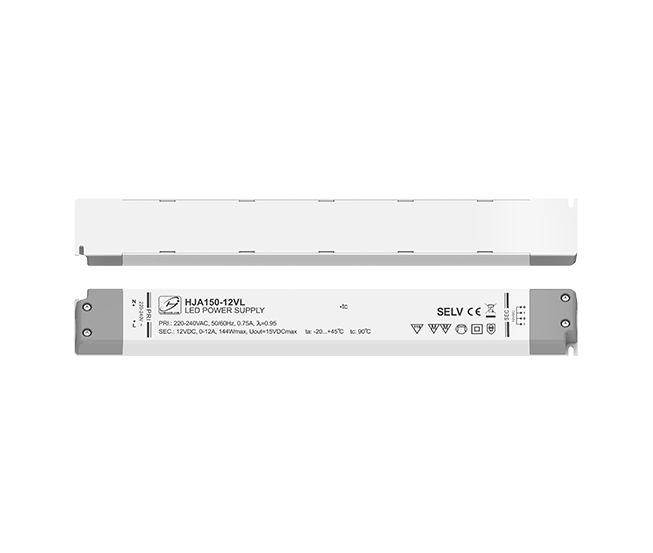

HJA150-12VL

220-240Vac

0.95

12V

0-12A

CV

-20…+45℃

90℃

341×44×18

ENEC

HJA160-24VL

220-240Vac

0.95

24V

0-6.67A

CV

-20…+45℃

90℃

341×44×18

ENEC
