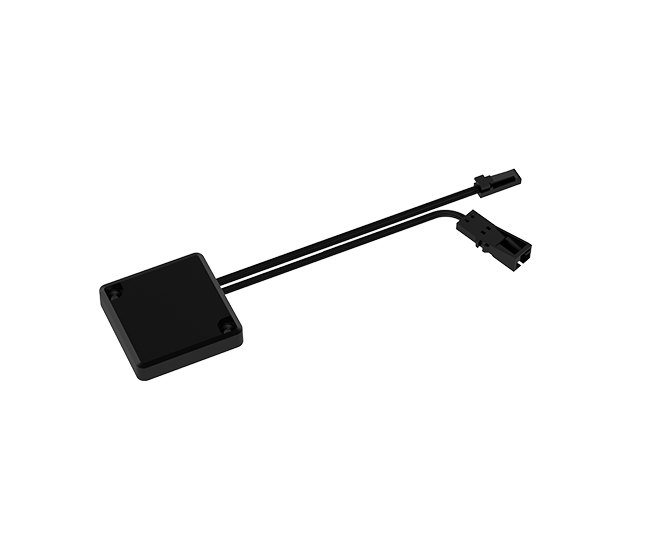

Touch Sensor Switch

Feature

—Model:HJI36-3IG-6(SS)

—LED load power:Max.36W.

Capacitive touch function: Max.30mm.

Small size: 35x35x7mm.

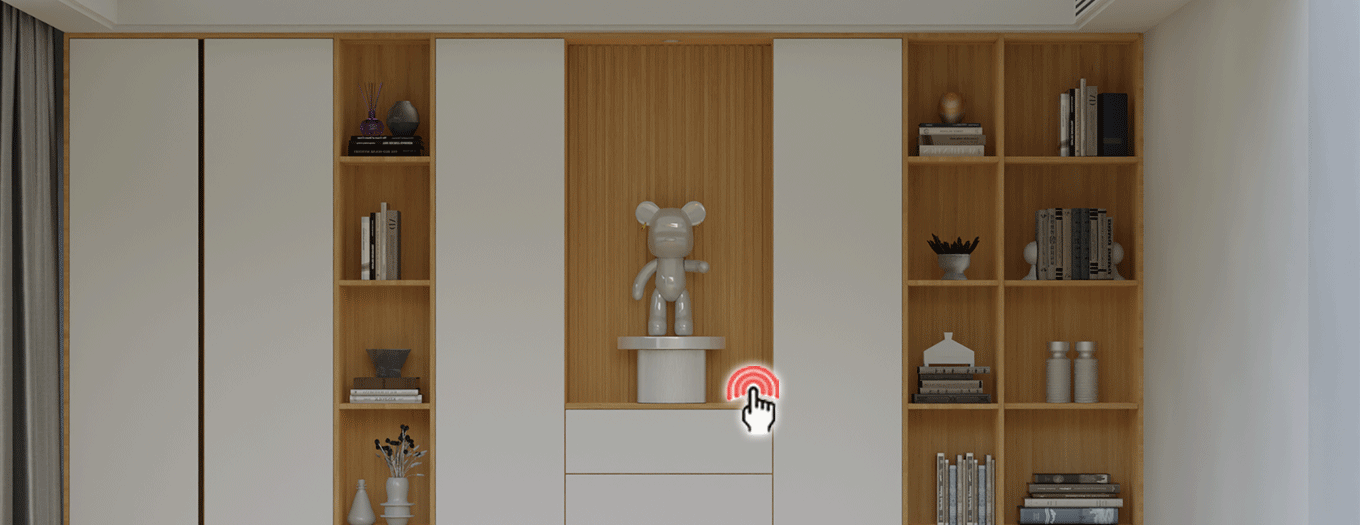

  • Application scenario
  • Size

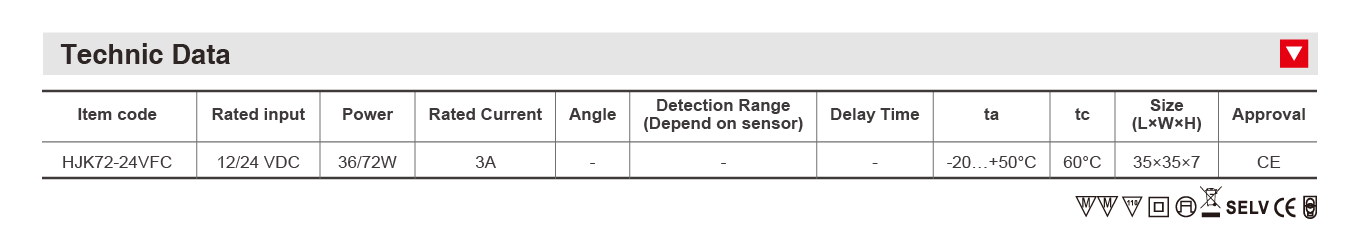

  • Technic Data

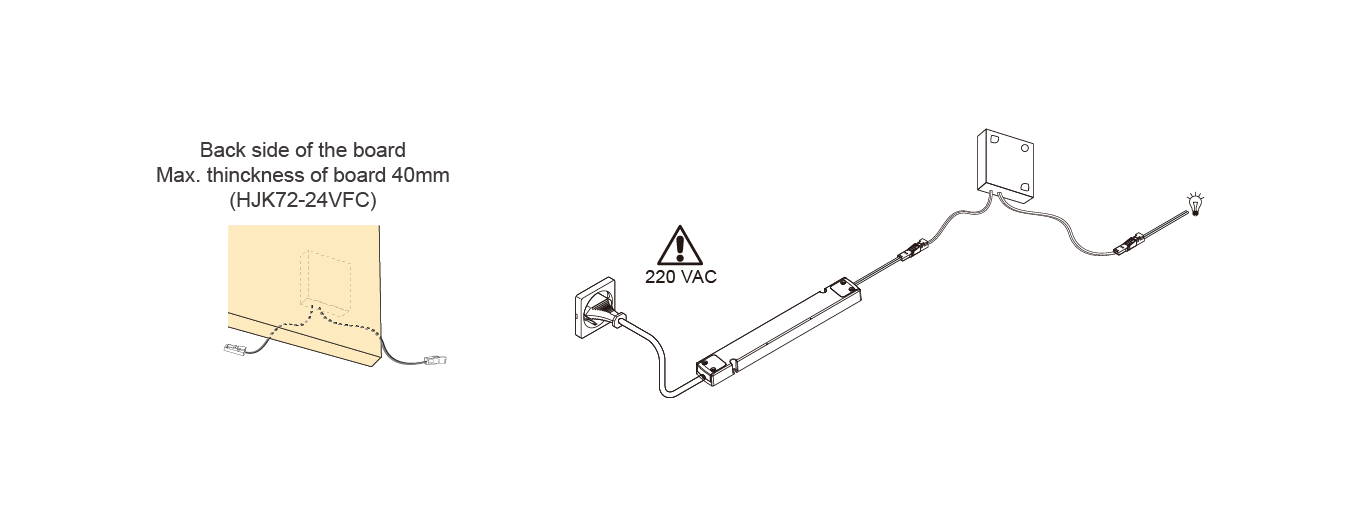

  • Installation

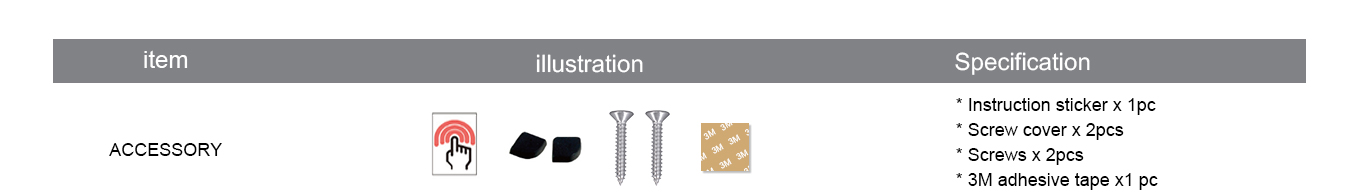

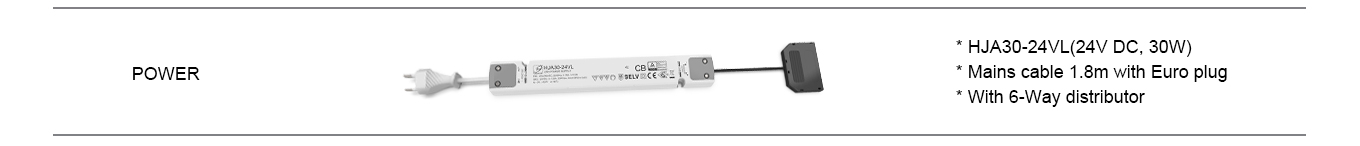

  • Accessories

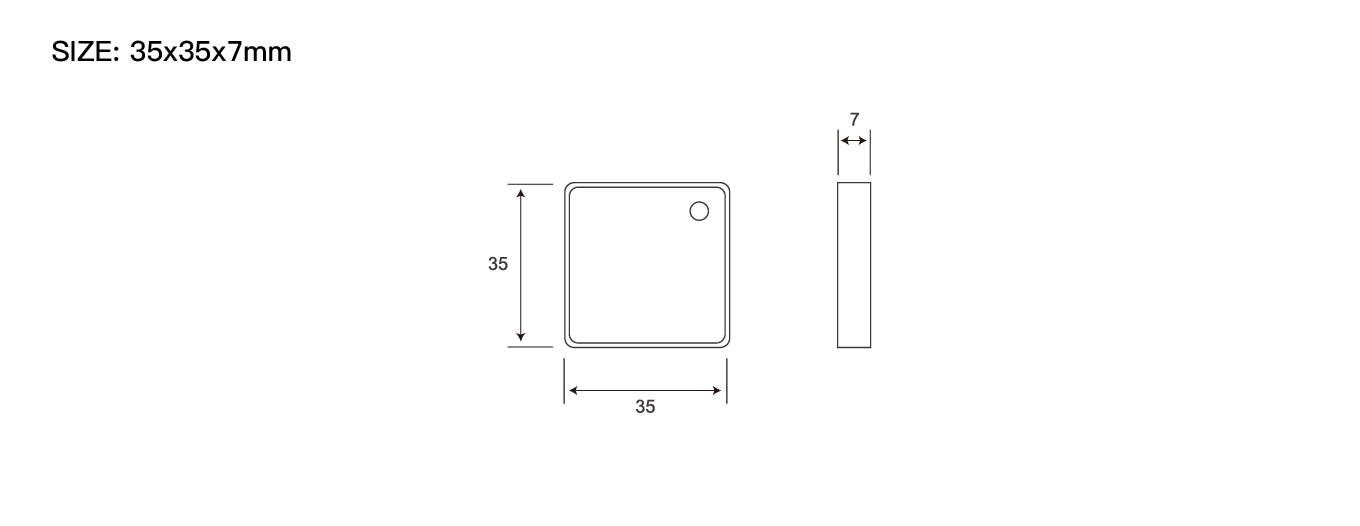

DIMENSION(MM)

Rated

Power

Input

Voltage

Rated

Current

Standby

Power

Detection

Range

35×35×7

36W

12V DC

3A

≤0.15W

Max. 30mm

Un-visible installation behind glass,wooden board

Max. thinckness of board 30mm
