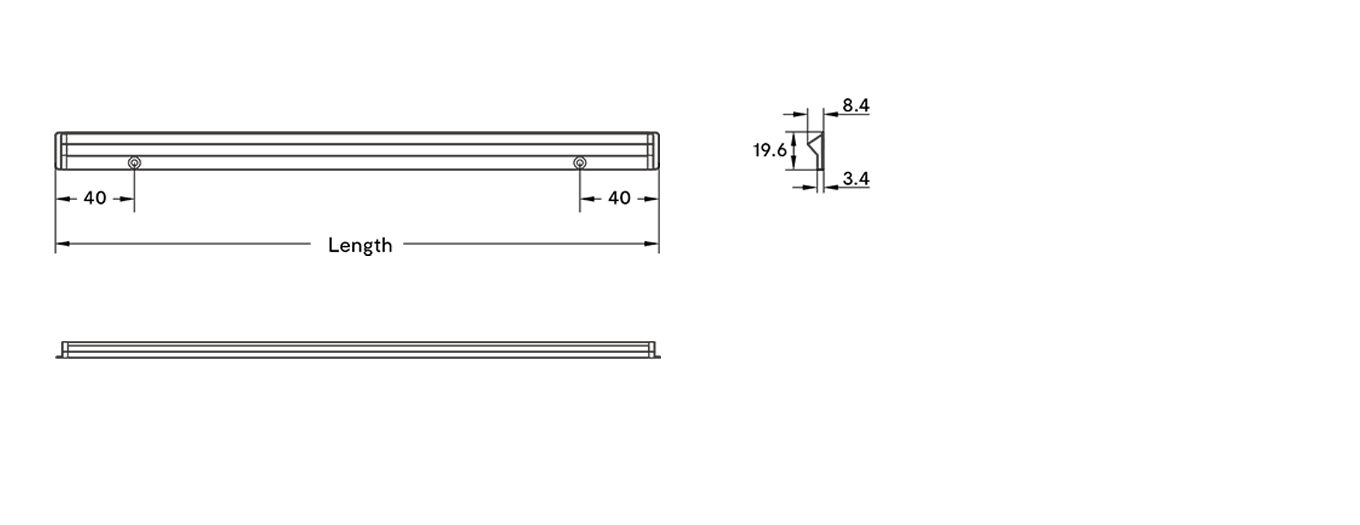

| Length: | See below | Color temperature: | 3000k,4000k,optional |
| Macadam: | 3 Step | Input cable length: | 1800mm |

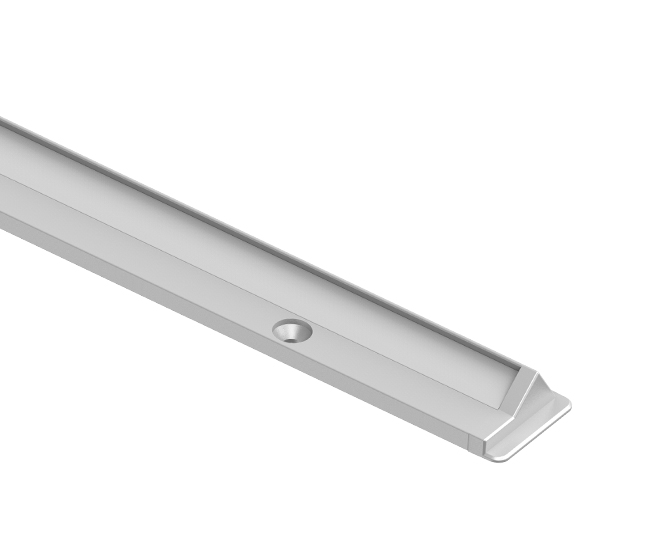

| Finishing color: | Black/Aluminium | Material: | Aluminium alloy |
| Length | Rated Input | Power | Luminous flux (TYP@4000K) | Ra | 75W (HJA24-75VL) |
| 450mm | 24V DC | 4W | 290lm | 83 | 18pcs |
| 650mm | 24V DC | 6W | 420lm | 83 | 12pcs |
| 850mm | 24V DC | 8W | 550lm | 83 | 9pcs |
| 1050mm | 24V DC | 9.5W | 665lm | 83 | 7pcs |
| 1250mm | 24V DC | 11W | 770lm | 83 | 6pcs |
