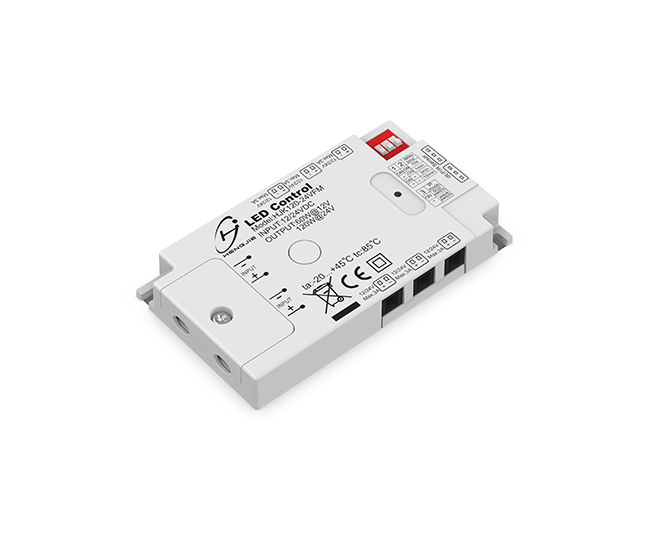

Wireless Receiver ( with one output channel )

Feature
• Use with wireless remote control
1. ON/OFF:
2. Dimming between 5%-100%
• Use with PIR Sensor
1.Human-body detection:when people moving in the detection area,
light turn on. After the set time, if there is no any motion detecting, light
turn off
2.Delay time:3min.
• Use with Magnetic collision emitter
1.When open the door, light turn on; when close the door, light turn off
2.Delay Time:after 10 minutes close,When the door is always open
• Use with IR Sensor
1.Infrared detection:When open the door, light turn on; when close the
door, light turn off
2.Delay time can be set from 10 sec to 10min.
• Use withTouch Switch
1.Capacitive Touch Switch:After touching the pad the first time, it turns
on, and the second time it turns off.
• 5-year warranty
  • Application scenario

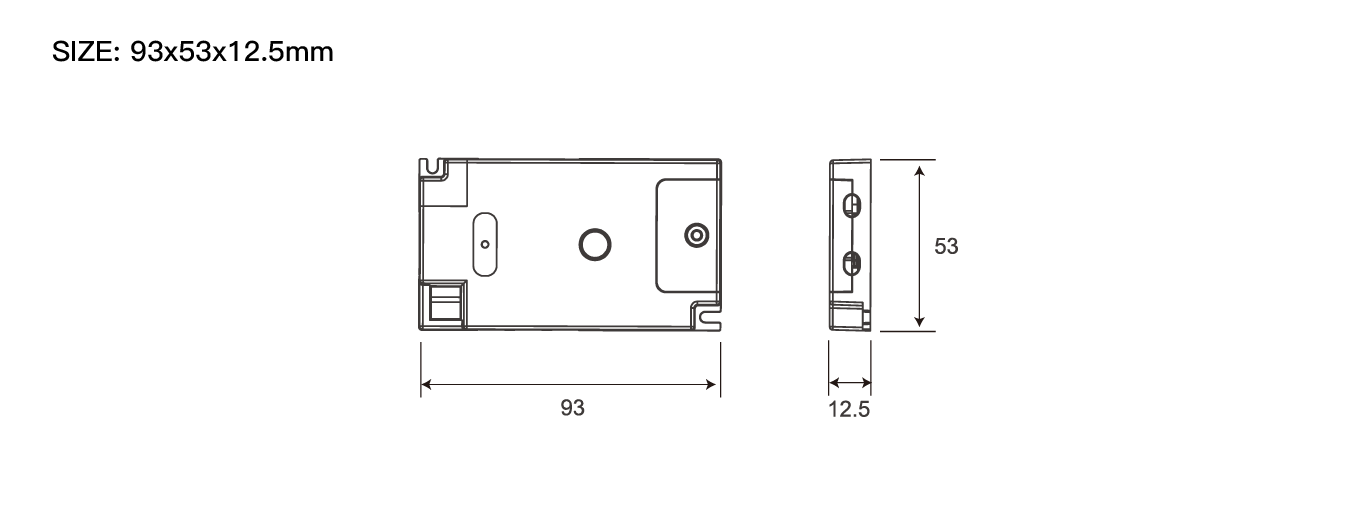

  • Size

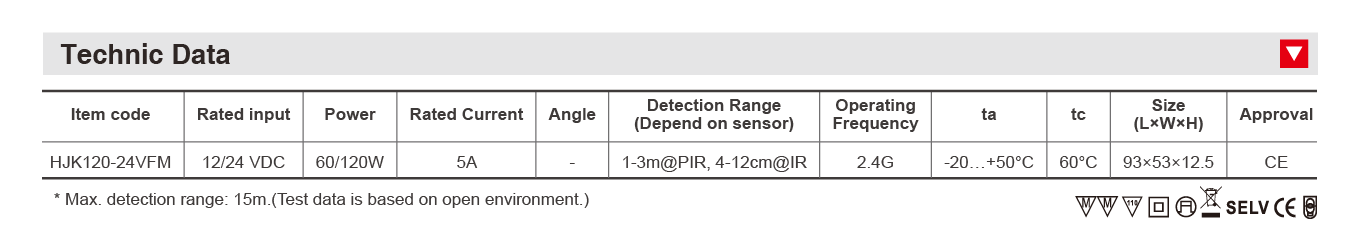

  • Technic Data

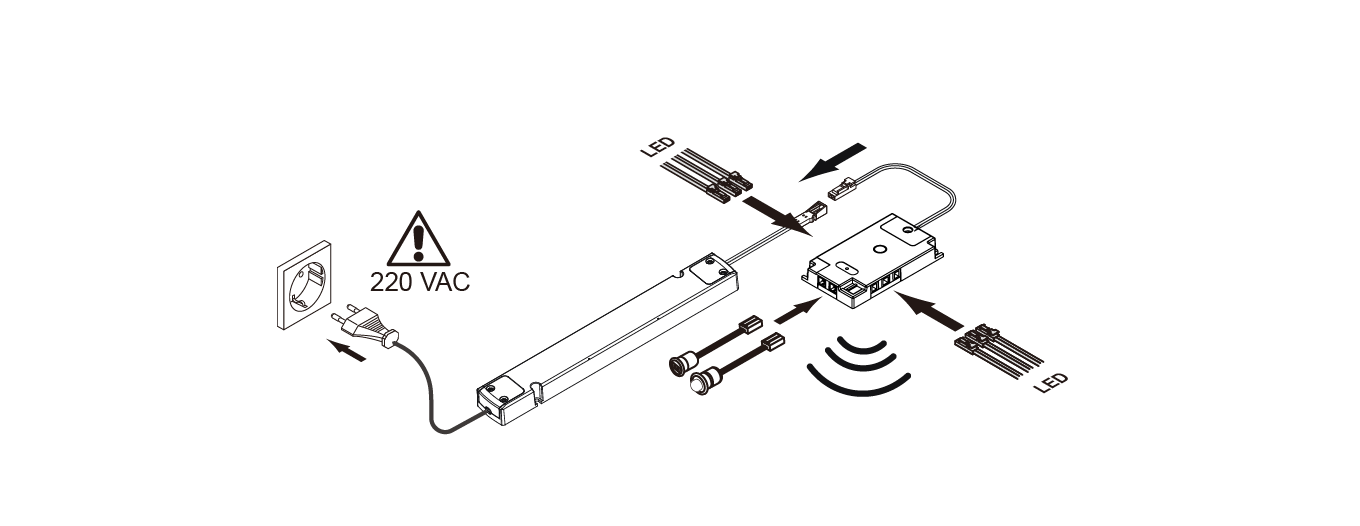

  • Installation
  • Accessories
