IR Sensor Switch

Feature

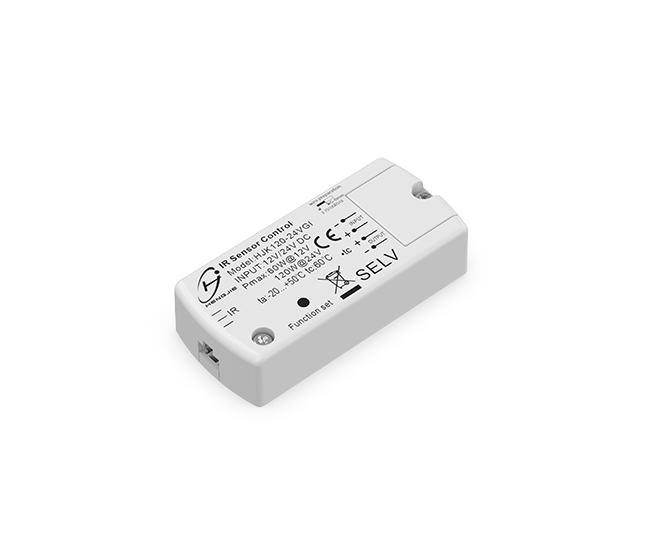

—Model:HJK120-24VGI

—LED load power:Max.60W@12V / Max.120W@24V

Door switch function&Wave control function.

—High efficiency.

—Optional choice: Used with our Mini_IR Sensor or IR Sensor.

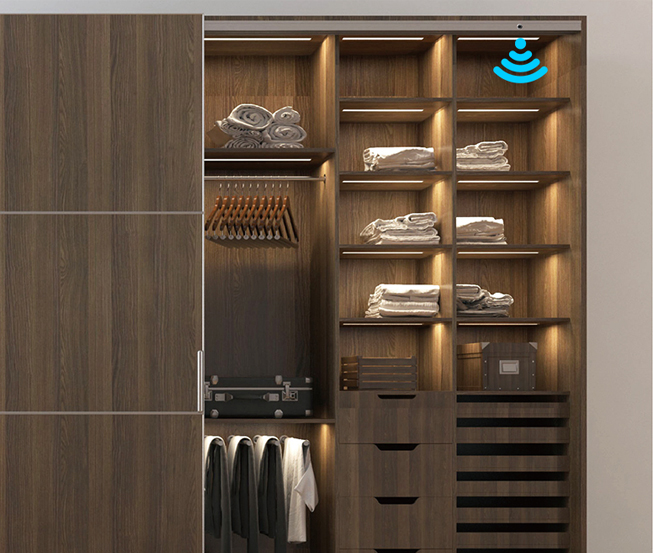

  • Application scenario
  • Size

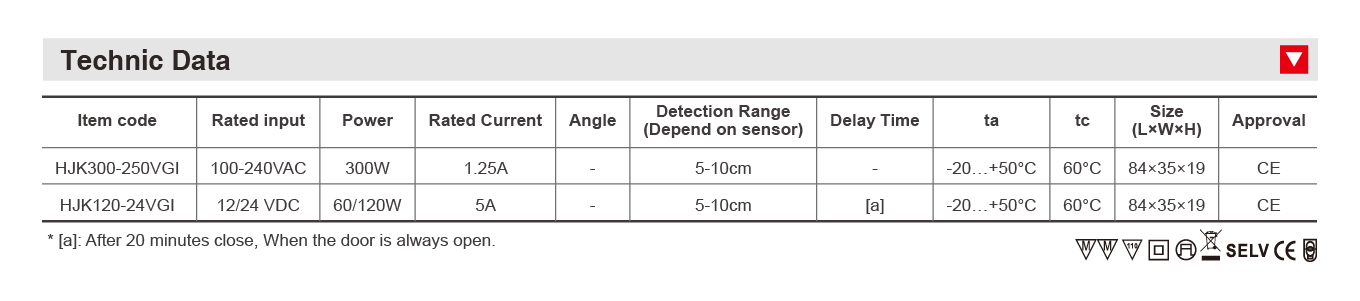

  • Technic Data

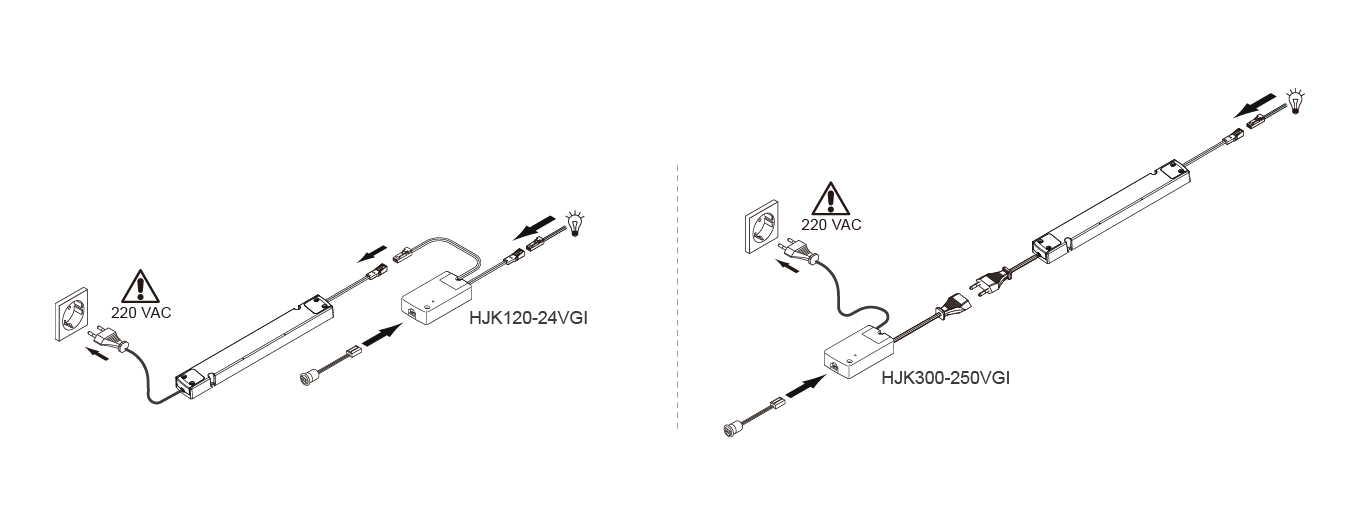

  • Installation

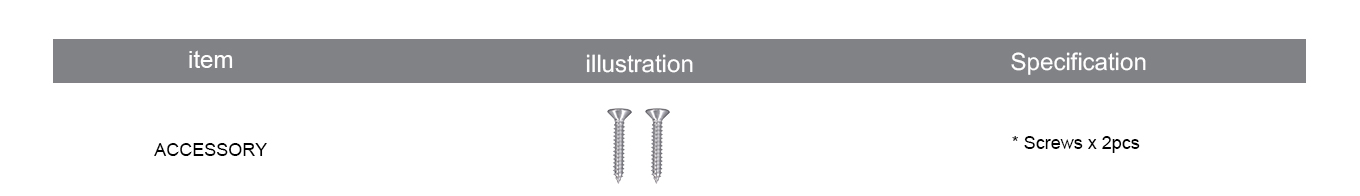

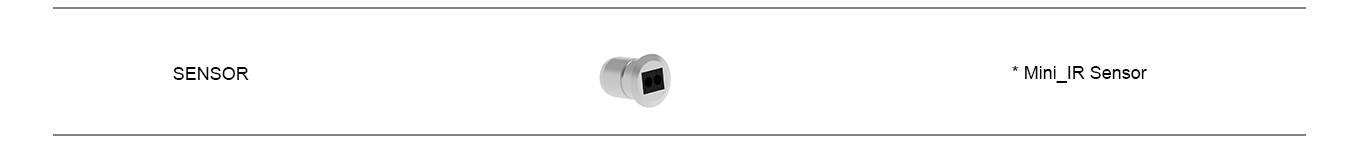

  • Accessories

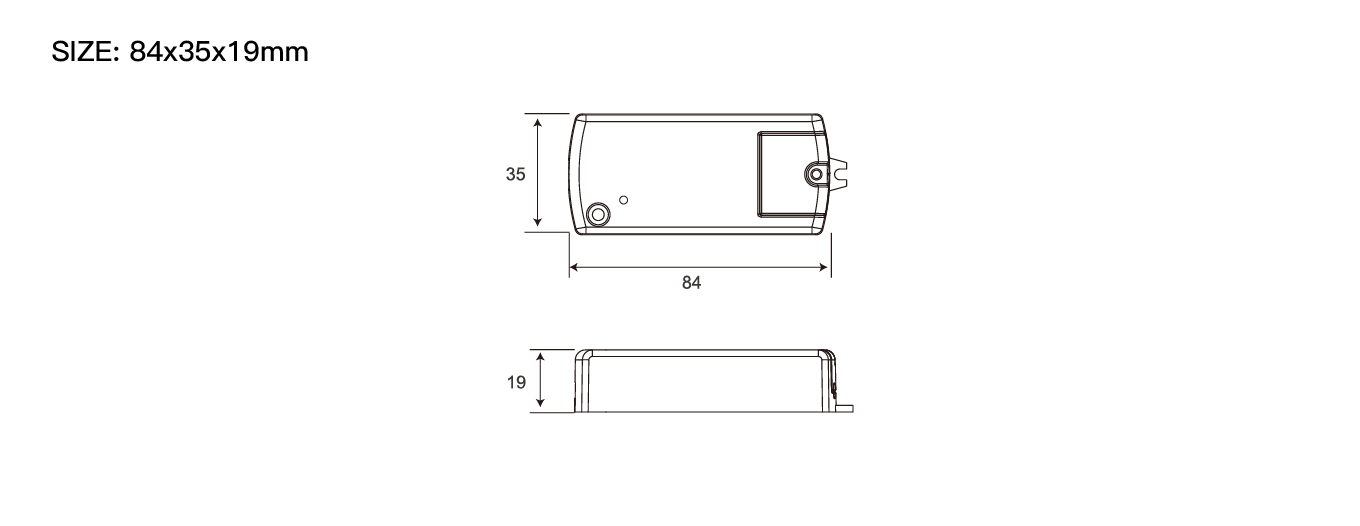

DIMENSION(MM)

Rated Power

Input Voltage

Rated Current

Standby Power

84×35×19

60W

12V

5A

≤0.5W

120W

24V

When open the door, light turn on; when close the door, light turn off

Wave hand first time, switch light on; wave hand second time, switch light off;wave hand third time, switch light on again(and so on...)

In the applicaiton of door switch, when the door remains open, the switch will turn off light automaticlly after 20 mins.Open/close the door again to restore settings.
